AK-CFA100

AK-CFA100

SKU: ACC-SW-AK-CFA100 Kategorie: ,

Opis

Camera Fiber Adaptor for AK-UCX100 & AK-PLV100GSJ Studio Cameras

Panasonic’s new AK-CFA100 Camera Fiber Adaptor is a simple, cost-efficient solution that enables the AK-UCX100 and AK-PLV100GSJ 4K studio cameras to be operated without a Camera Control Unit (CCU).

  • Compatible with AK-UCX100 & AK-PLV100GSJ Studio Cameras
  • Supplies power to camera head
  • Supplies power to a camera up to 2 km away via an optical composite cable
  • Compact design with 2U half-size rack mount
4K studio camera AK-UCX100
4K studio camera AK-PLV100GSJ

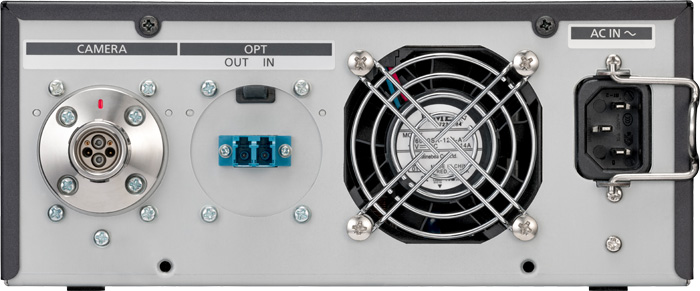

Rear View

Specifications

General
Power Supply AC 100 V-240 V, 50 Hz/60 Hz
Power Consumption 450 W
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10 % to 90 % (no condensation)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Weight Approx. 4.4 kg (9.7 lbs.)
Dimensions (W x H x D) 210 mm x 88 mm x 375 mm
(8-17/64 inches x 3-15/32 inches x 14-49/64 inches) (excluding protrusions)
Input/Output
CAMERA Optical composite connector
OPT IN LC connector, Single mode fiber
OPT OUT LC connector, Single mode fiber
AC IN AC 100 V-240 V, 50 Hz/60 Hz
