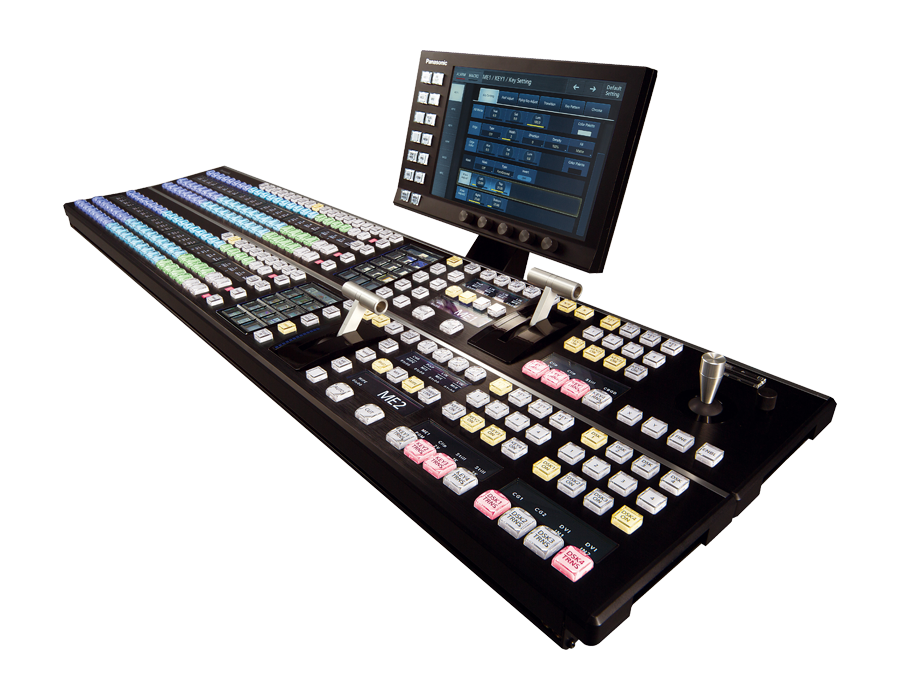

AV-HS6000

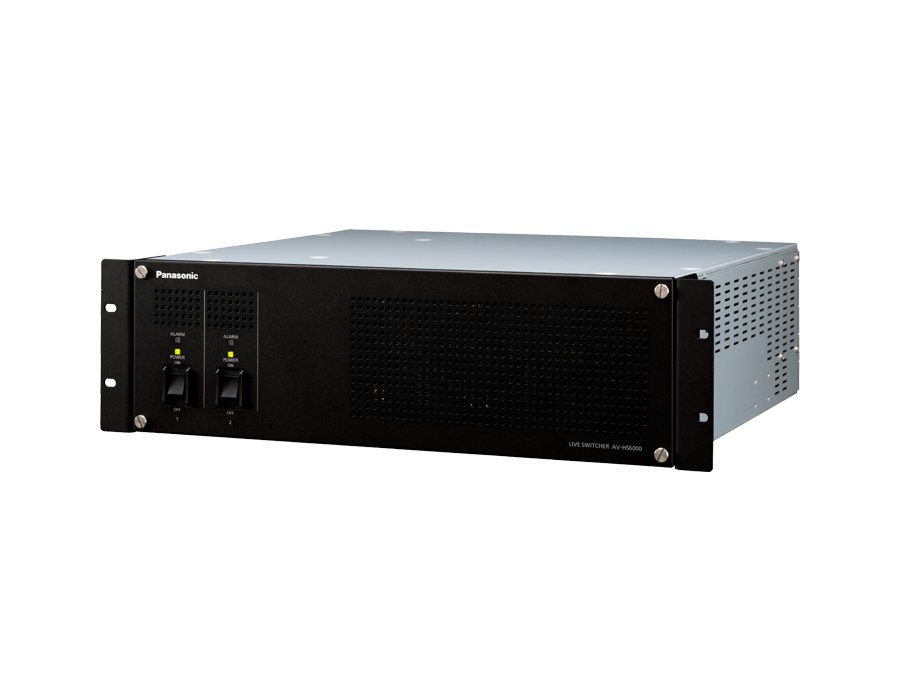

AV-HS6000 - obrazek 2

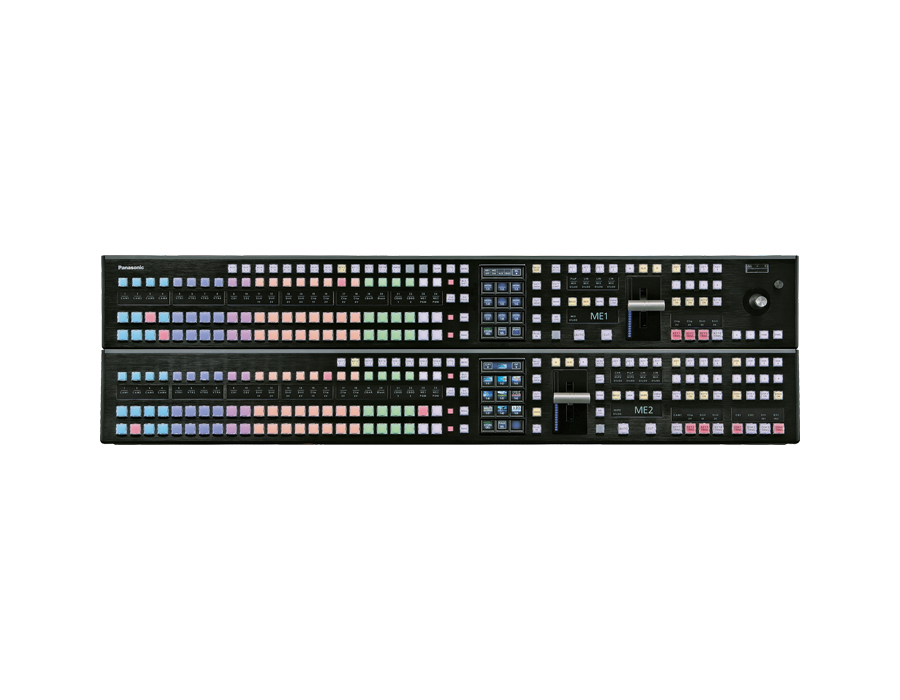

AV-HS6000 - obrazek 3

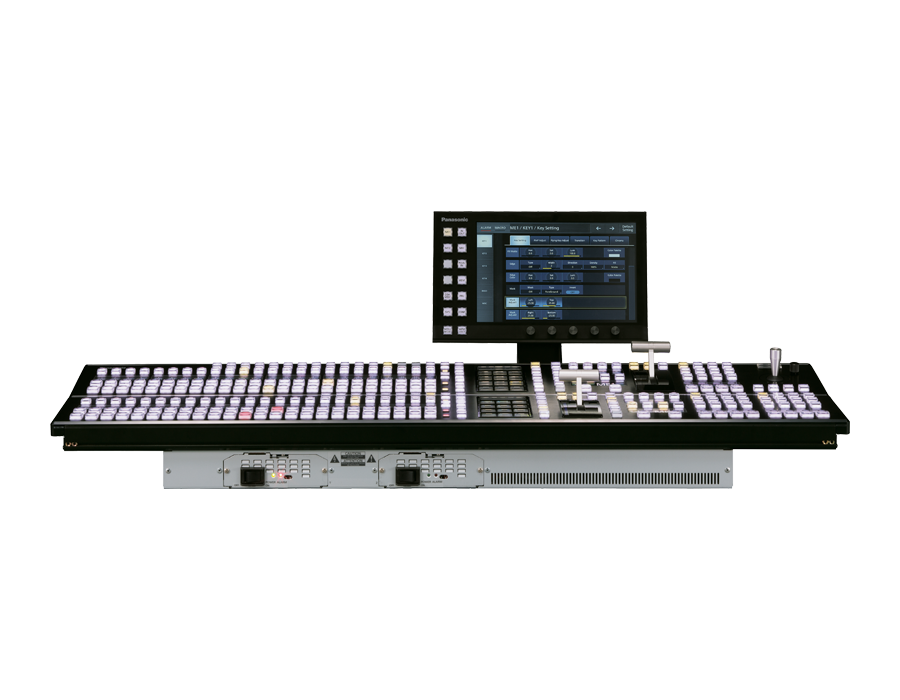

AV-HS6000 - obrazek 4

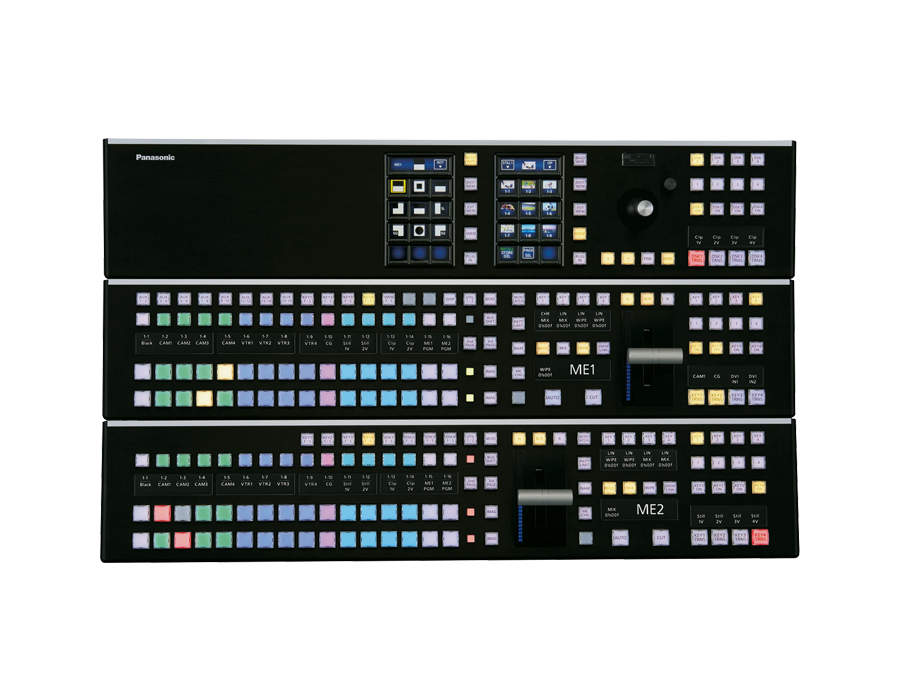

AV-HS6000 - obrazek 5

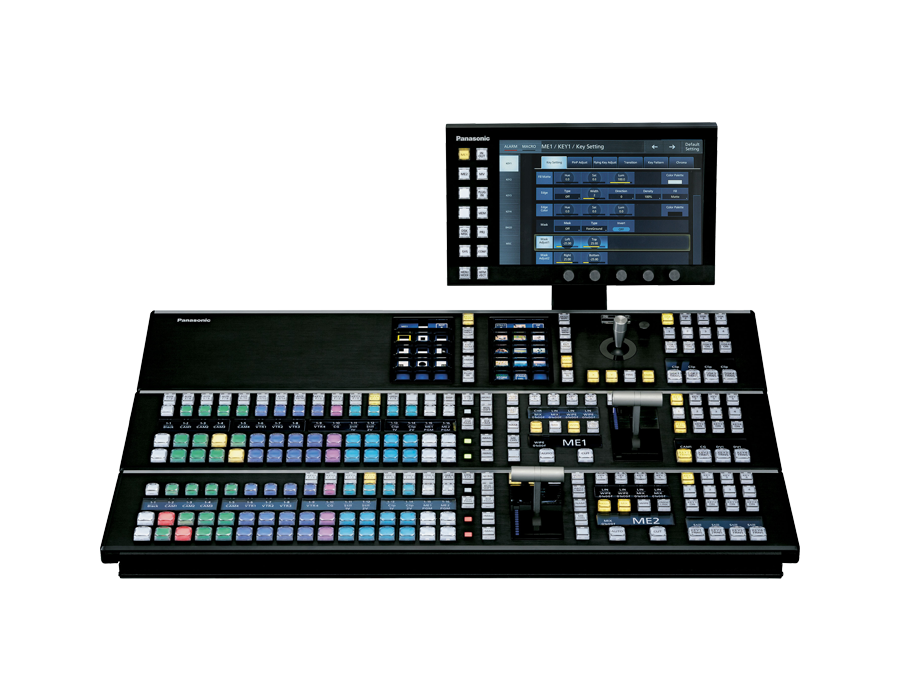

AV-HS6000 - obrazek 6

AV-HS6000

SKU: PAN-SW-AV-HS6000 Kategorie: ,

Opis

2ME Live Switcher with complete system adaptability, intuitive operations, high reliability, and advanced 4K compatibility*1

Excellent Live Operability Meets Creativity

System Functionality*2
32 SDI and two DVI inputs and 16 SDI outputs, with a wide variety of keyers and DVEs. Versatile transition modes and extensive video production features are achieved with high cost effectiveness. Functions are scalable using plug-in software.

Operability
Intuitive operation is realized by Multi-Selection Panel, cross point buttons with color grouping function, and a OLED source name display panel. These function to enhance visibility helps quick and accurate switching.

Reliability
The power supply for the mainframe and control panel is redundant. Up to three panels can be operated through an IP connection to provide stable system operation.

RELATED VIDEO

BLOCK DIAGRAM

AV-HS6000 Block Diagram (Standard mode)

AV-HS6000 Block Diagram (3G mode)

  • * Input and output is by odd-numbered terminals only.
  • * 1080i format signals where half of the lines are thinned out from OUT13 and OUT15 (1080p) format signals are output from OUT14 and OUT16 terminals.

AV-HS6000 Block Diagram (4K mode)

  • * 1080i format signals where half of the lines are thinned out from OUT13 and OUT15 (1080p) format signals are output from OUT14 and OUT16 terminals.
