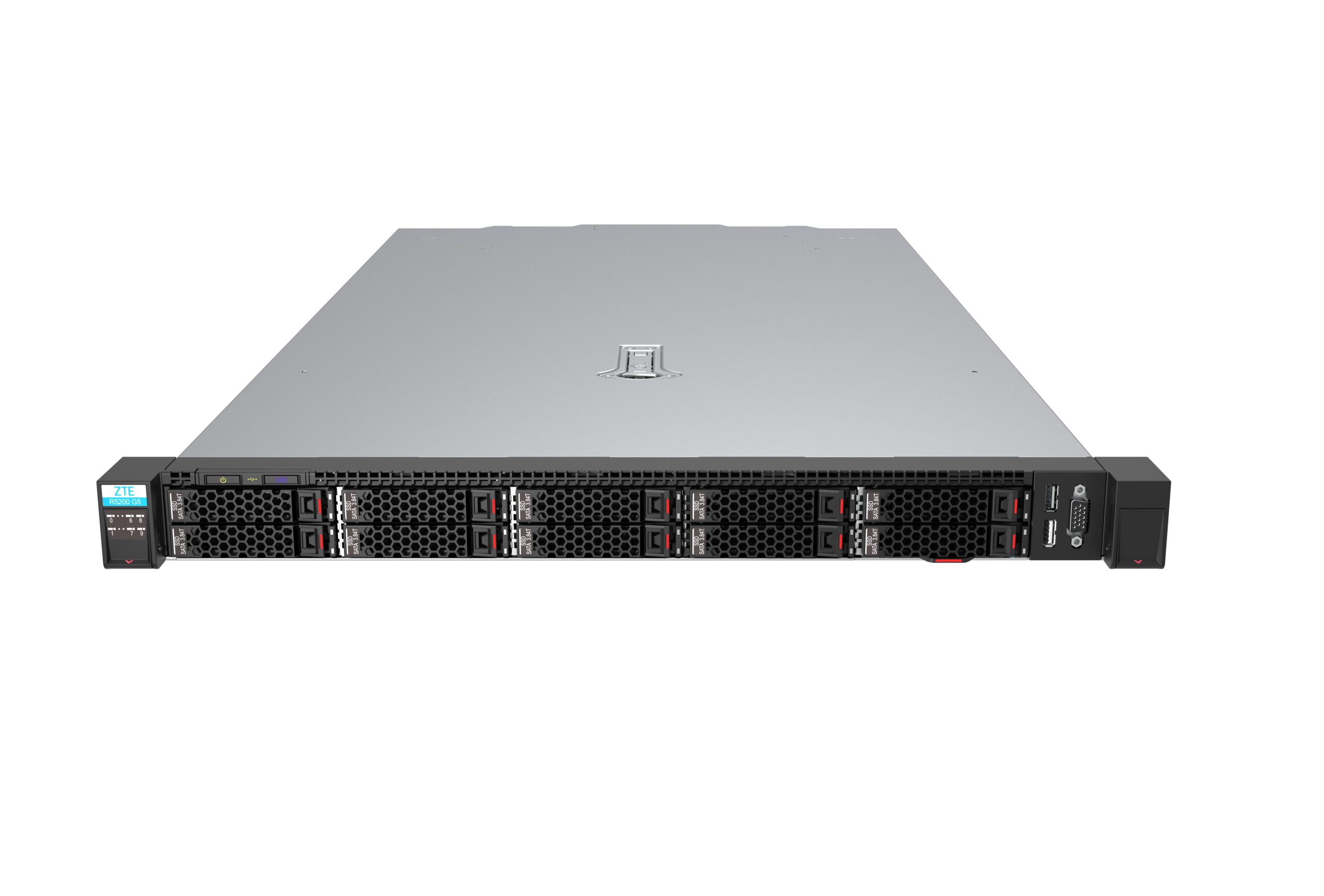

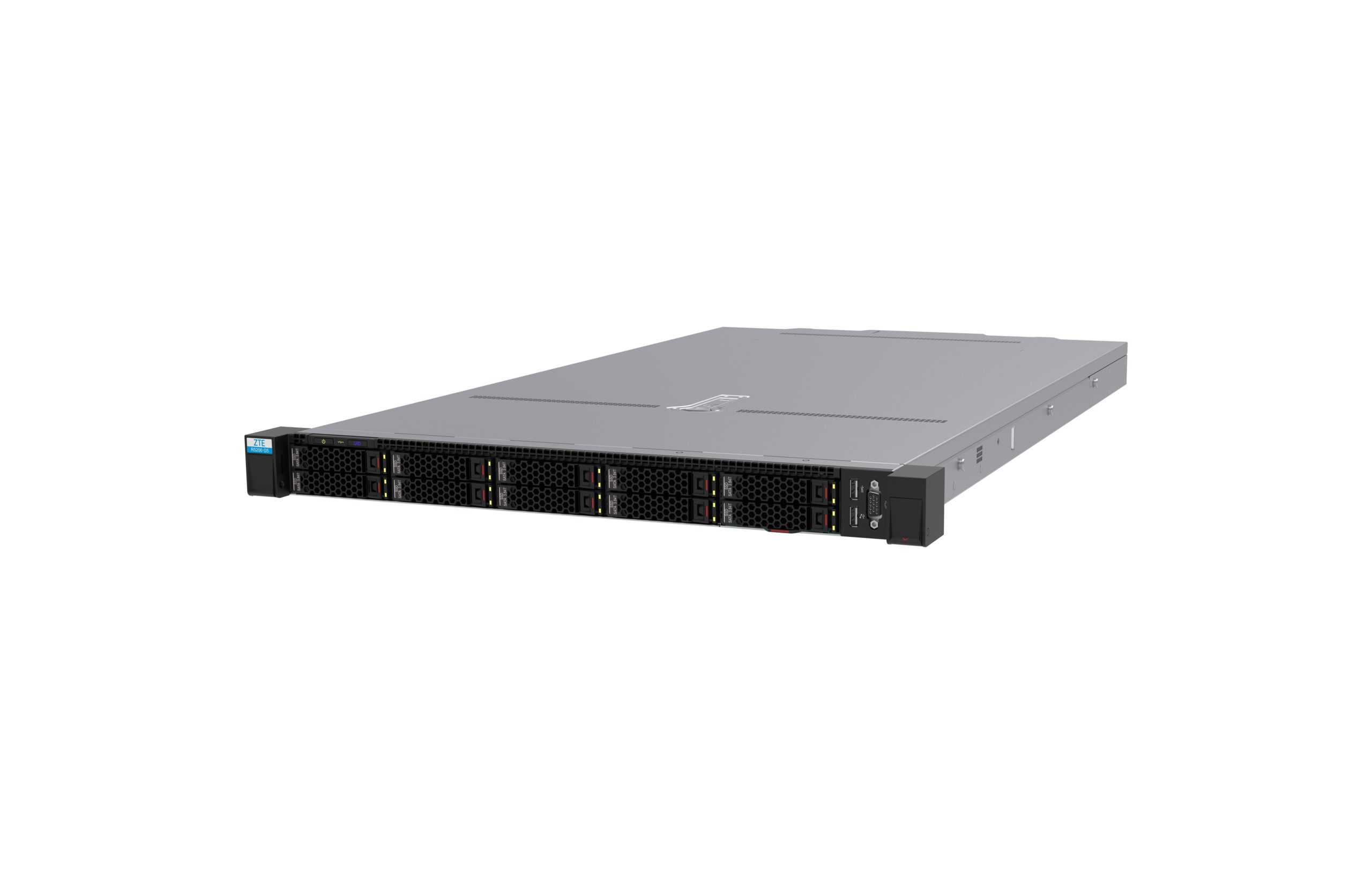

The R5200 G5 is a new-generation of 1U2-socket general rack server supporting two Intel® Xeon® 4th/5th generation scalable processors (Eagle Stream). With a high-density, modular, and streamline design, the R5200 G5 features high performance, high reliability, easy expansion, and easy management, which is widely applicable to the Internet, cloud computing, big data, and virtualization fields.
High Density, High Performance
■Provides dual CPUs for high-speed interconnection, and up to three UPIs for fast channel interconnection. The transmission rate can reach 20GT/s.
High Scalability, High Bandwidth
■Provides a maximum of twelve 2.5” disks to meet the requirements for large-capacity storage.
High Availability, High Reliability
■The hard disks, power supplies, and fans support hot swapping, improving the availability of the system.
Convenient Management, Easy Maintenance
■Supports standard interfaces such as IPMI, SNMP, and Redfish, so that the device can be integrated with third-party management systems.
Green, Energy Saving, Environment Protection
■The 80PLUS high-efficiency platinum/titanium power supply ，supports high-voltage DC and low-voltage DC technologies, intelligent fan speed adjustment, and lead-free design for environmental protection.
Supports thirty-two DDR5 memory slots with a maximum rate of 5,600MT/s
Interconnection bus
Provides three UPI interconnection links. The maximum rate of a single link is 20GT/s
Provides x4 DMI high-speed channels.
Hard disk controller
Supports RAID 0/1/5/6/10/50/60 and power-off protection
Local storage

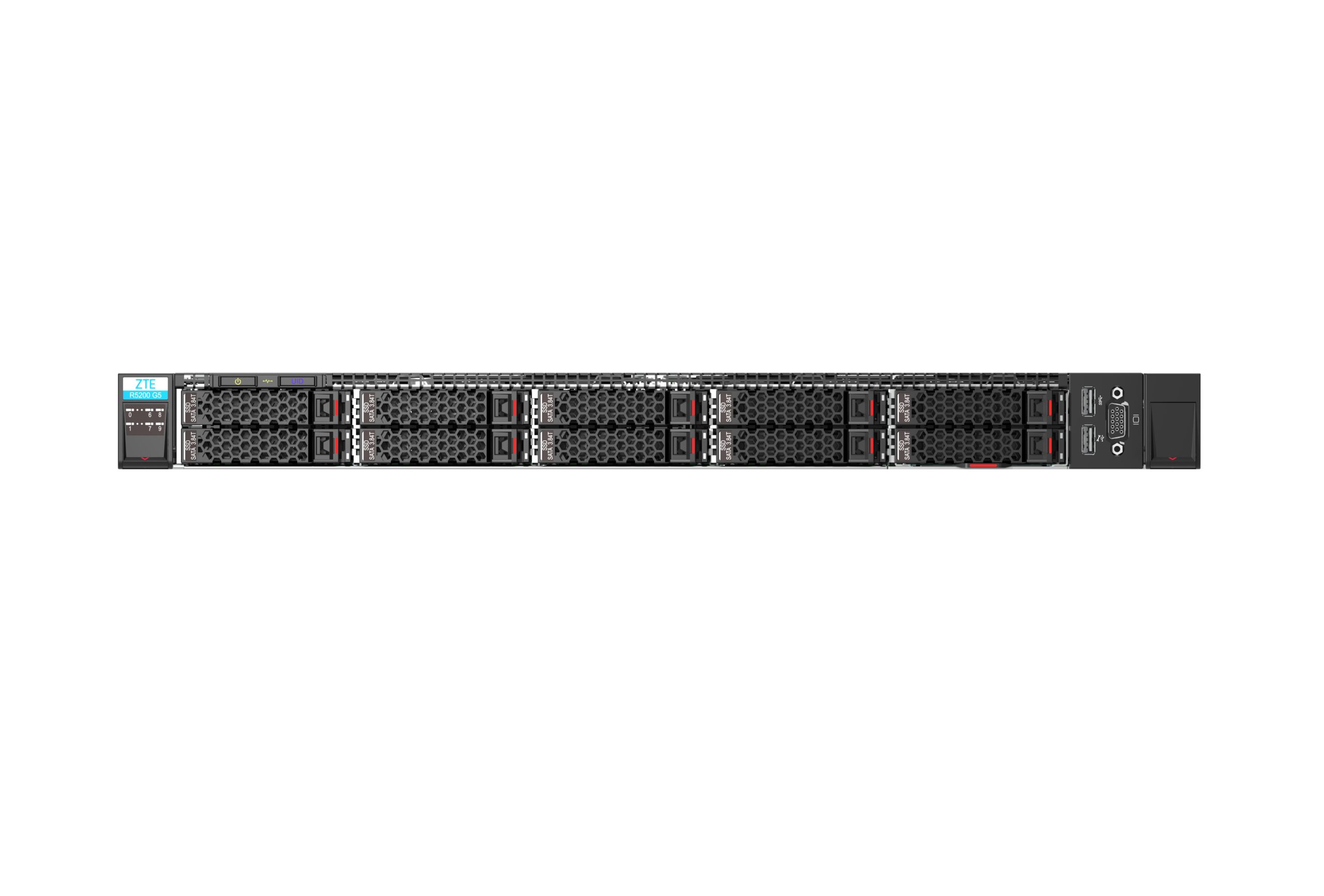

Front storage hard disks: 10×2.5 „slot, SAS/SATA is supported, NVMe SSD is optional, and hot swapping is supported. Rear storage hard disks: 2×2.5″slots, supports SAS/SATA is supported, NVMe SSD is optional, and hot swapping (optional)
Network resources
Supports two OCP3.0 interfaces, one of which supports PCIE5.0 x16 and the other supports PCIE5.0 x8.
PCIe slot
Supports up to 6 PCIe slots
Supports maximum of three PCIe standard slots
Two dedicated OCP slots
One built-in dedicated RAID card slot
External device interface

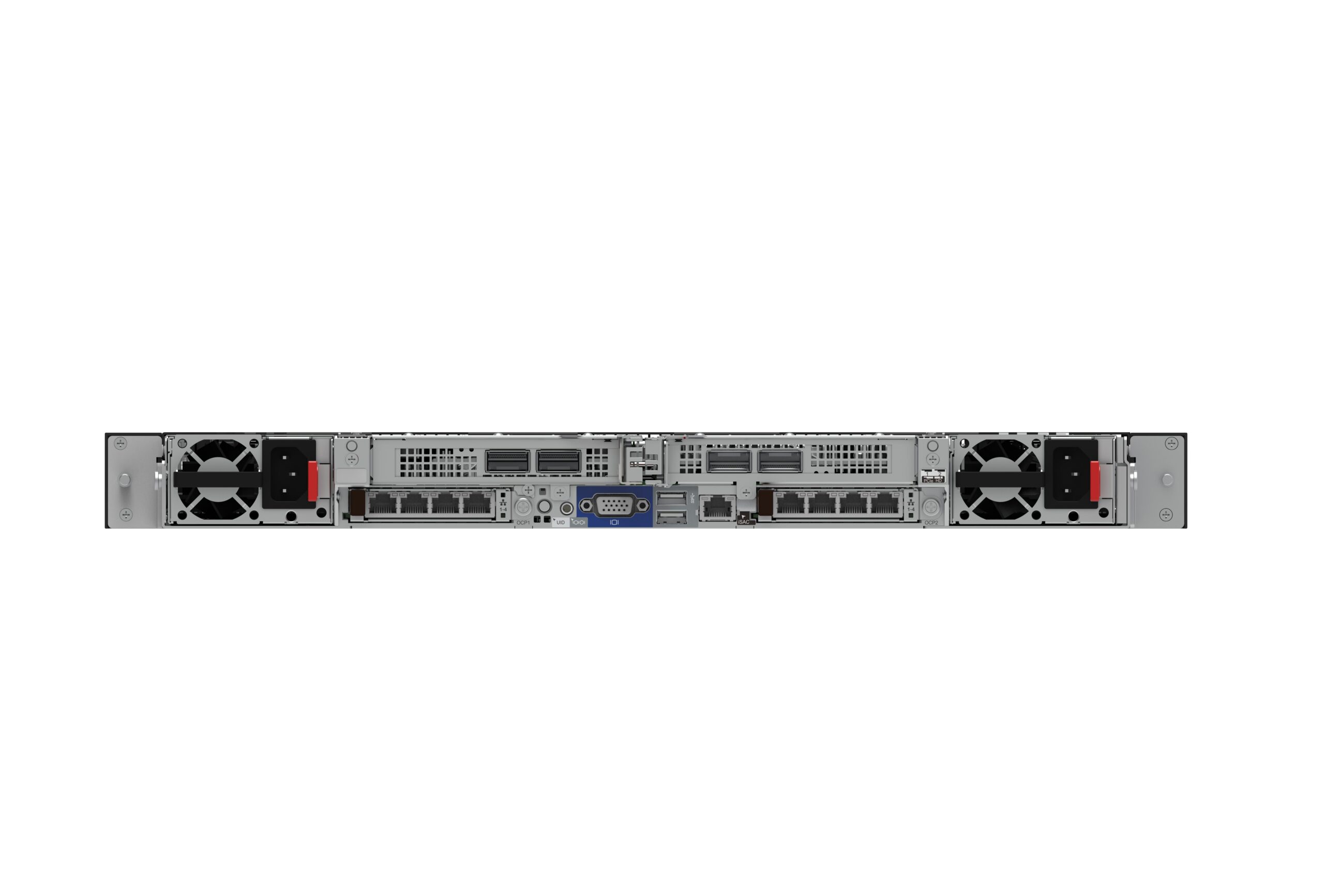

Five USB interfaces (two rear USB3.0 interfaces, one front USB3.0 interface, one internal USB3.0 interface, one for front USB2.0 interface) Two VGA interfaces (one front end and one back end) One serial port
Device Management interface
One independent GE management network port
Display
Integrated video card, supporting optional PCIe standard video cards
Compatible OS
Compatible with the existing mainstream server operating systems: Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and CGSL
Power
Supports 1+1 hot/swappable redundant power supply
(Optional) 550 W/800 W/1200 W/1600 W/2000W high-effciency platinum power supply
(Optional) 800 W/1300 W/1600 W/2000W high-efficiency titanium power supply
Supports 110V/220 V AC, 240V/336 V high-voltage DC, and-48V DC.
Fan
Eight high-efficiency fans, N+1 redundancy, and intelligent heat-dissipation system
Ambient conditions
Operating temperature: +5oC to +45oC (The operating temperature depends on different configurations. For details, see the technical documentation.) Storage temperature: -40oC to +65oC Operating humidity: 8% to 90% RH, no condensation Transport storage humidity: 5% to 95% RH, no condensation Altitude: <3,000m. When the altitude is 900m higher, the operating temperature will decrease by 1℃ for every 300m increase in altitude. Mechanical disks cannot be configured for devices larger than 3,000m
Size
432mm x 43mm x 780mm
Weight in full configuration
Maximum configuration: About 27kg (excluding rails)
Related certificate
CE, CCC, CQC, etc
Note:The official website information is only for reference. For specific server sales, please contact the local representative office;
The configuration support is affected by the choice of different models.Please refer to the detailed product technical documentation for details.
