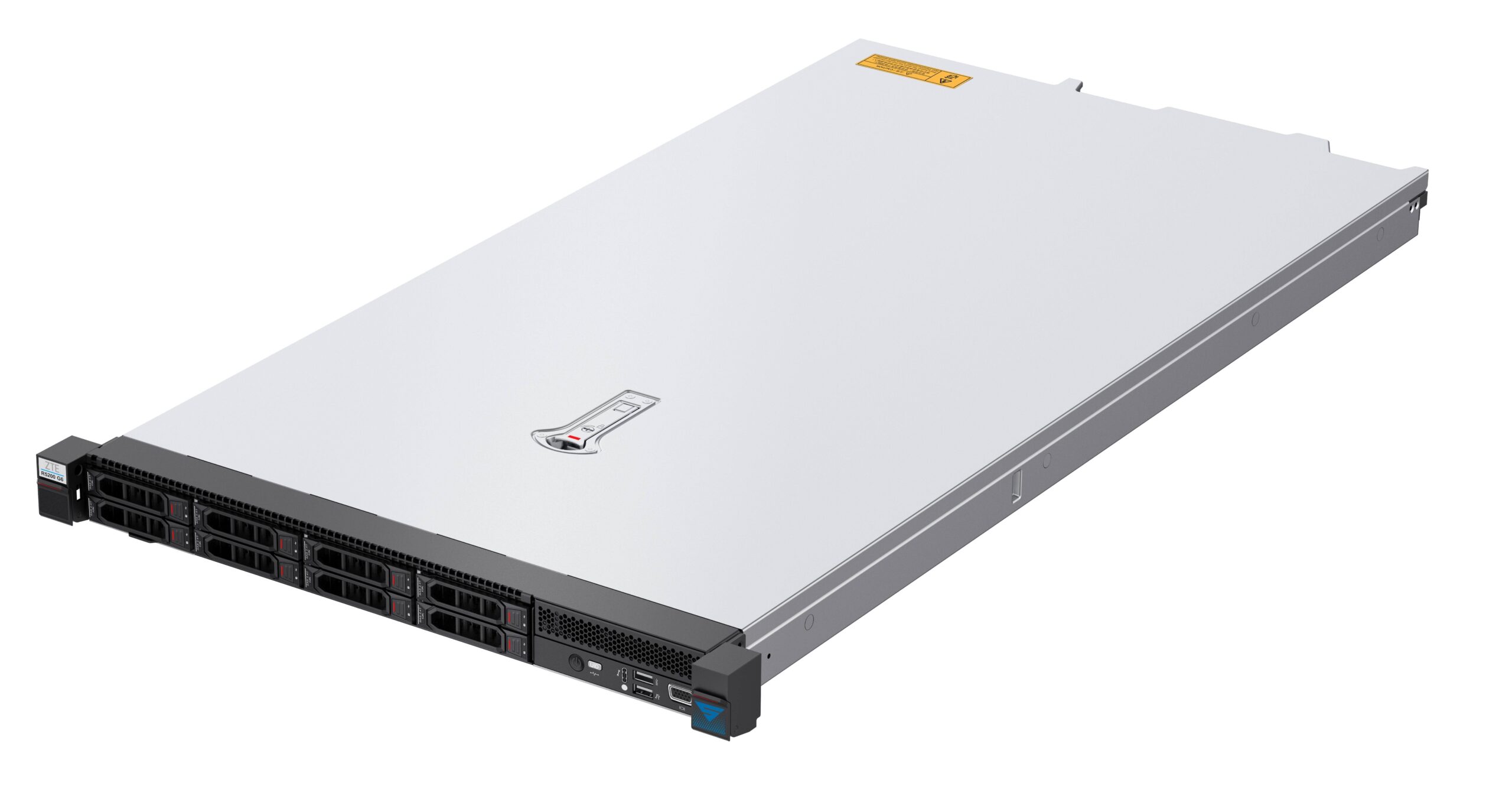

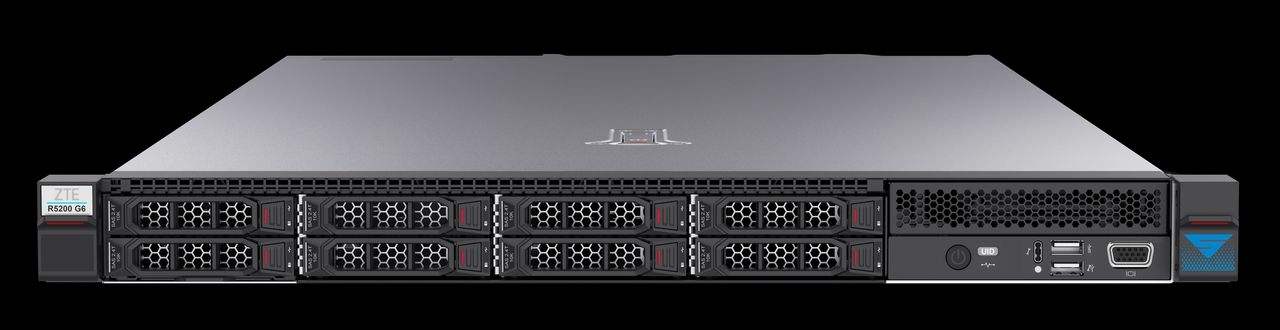

R5200 G6 is ZTE’s next-generation 1U dual-socket universal rack server.It supports two Intel® Xeon® 6 processors with E-core architecture, offering high density, modular design, and refined engineering. The R5200 G6 features high performance, large capacity, high reliability, easy scalability, and simplified management, making it widely applicable to cloud computing, big data, virtualization, and other fields.
High Density, High Performance
Supports two Intel® Xeon® 6 processors with E-core architecture, with up to 144 cores per processor. Provides 32 DDR5 memory slots, with speeds up to 6400 MT/s.
High Scalability, High Bandwidth
Supports up to 10× 2.5” drive bays, with a maximum of 10 NVMe SSDs, and up to 5 PCIe 5.0 expansion slots.
High Availability, High Reliability
Optimized thermal design enhances system reliability, extends component lifespan, and reduces costs. Hot-swappable components, including hard drives, power supplies, and fans, improve system availability.
Easy Management & Maintenance
Intelligent management platform enables out-of-band monitoring of CPU, memory, storage, fans, power supplies, and network resources. Supports IPMI, SNMP, Redfish, and other standard interfaces, allowing integration with third-party management systems.
Green, Energy-Efficient, and Eco-Friendly
Equipped with 80PLUS Platinum/Titanium high-efficiency power supplies, supporting power capping. Lead-free design, promoting environmental sustainability.
Technical Specifications
Form Factor
1U
Processor
Supports 1 or 2 Intel® Xeon® 6 processors with E-core architecture
Memory
32 DDR5 memory slots, with a maximum speed of 6400 MT/s
Interconnect Bus
Provides 4 UPI interconnect links, with a maximum speed of 24 GT/s per link
Front Storage Drives:
8× 2.5” drive bays, supporting SAS/SATA, optional NVMe SSD, and hot-swappable
Rear Storage Drives (Optional):
2× 2.5” drive bays, supporting SAS/SATA, optional NVMe SSD, and hot-swappable
Network Resources
Provides 2 OCP 3.0 interfaces, supporting PCIe 5.0 x8, with optional expansion to 2 PCIe 5.0 x16, and optional MultiHost support.
PCIe Slots
Supports up to 5 PCIe expansion slots:
2 dedicated OCP slots
3 standard PCIe slots
External Device Interfaces
5 USB ports:
2 rear USB 3.0 ports
1 front USB 3.0 port
1 internal USB 2.0 port
1 front USB 2.0 port
2 VGA ports (1 front, 1 rear)
1 serial port (Type-C)
Device Management Interface
1 independent GE management network port
Display
Integrated graphics card, with an option to support PCIe standard graphics cards.
Compatible Operating Systems
Compatible with current mainstream server operating systems:
Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Enterprise Linux
VMware ESXi
Ubuntu, etc.
Power Supply
Supports 1+1 hot-swappable redundant power supply.
Optional 800W/1200W/1600W/2000W, supporting high-efficiency Platinum/Titanium power supplies.
Supports 110V/220V AC, 240V/336V high-voltage DC, and -48V DC.
Cooling System
4 high-efficiency fans, N+1 redundancy, with an intelligent cooling system.
Environmental Conditions
Operating Temperature: +5ºC to +45ºC (Operating temperature varies by configuration
refer to the technical documentation for details).
Storage Temperature: -40ºC to +65ºC.
Operating Humidity: 8% to 90% RH, non-condensing.
Storage/Transport Humidity: 5% to 95% RH, non-condensing.
Altitude: ≤3000 m. For every 300 m increase above 900 m, the operating temperature decreases by 1°C. Mechanical hard drives are not supported above 3000 m.
Dimensions
436mm x 43mm x 830mm (W × H × D, excluding side ears and rails).
Standard 19-inch rack (rack depth ≥1 meter).
Full Configuration Weight
Maximum configuration weight: approximately 30kg (excluding rails).
Certifications
CCC and other relevant certifications.
Note:The official website information is only for reference. For specific server sales, please contact the local representative office;
The configuration support is affected by the choice of different models.Please refer to the detailed product technical documentation for details.
