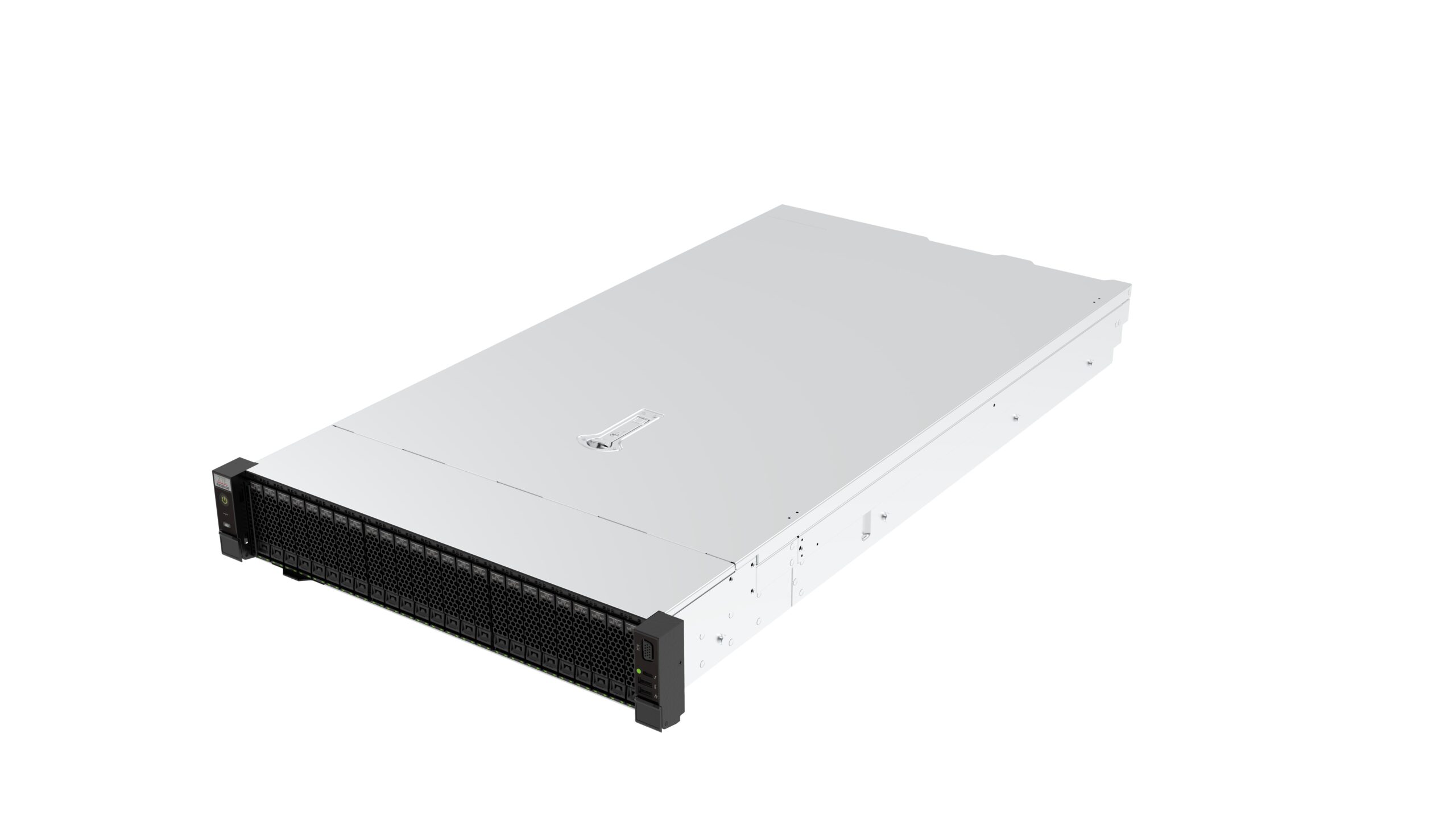

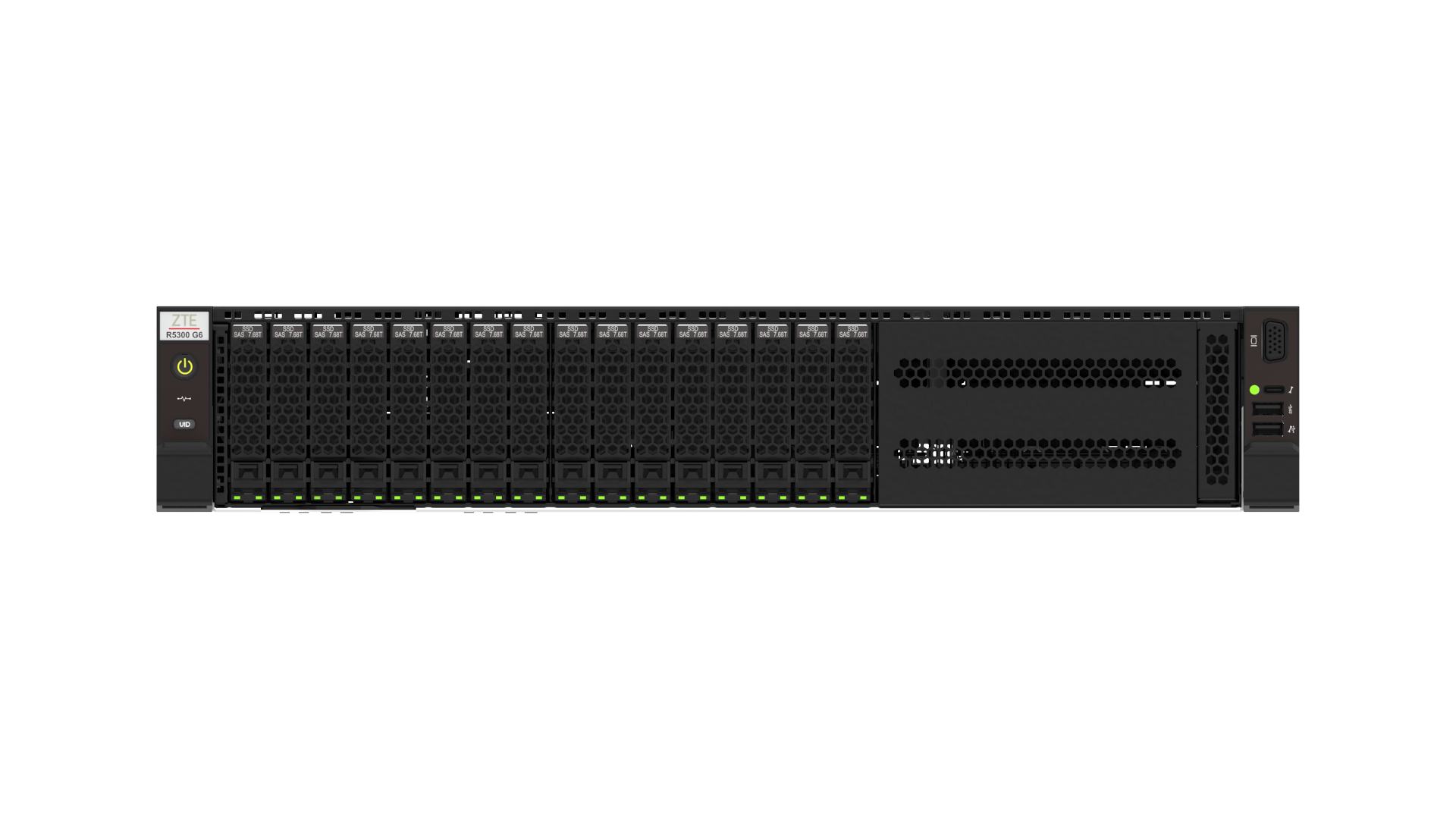

The R5300 G6 is a new-generation 2U2-socket general-purpose rack server of ZTE. It supports two Intel® Xeon® 6 energy-efficient core processors. With a high-density, modular, and streamline design, the R5300 G6 features high performance, large capacity, high reliability, easy scalability, and easy management. It is widely applicable to cloud computing, big data, virtualization, AI inference, and other fields.
High density, high performance
Supports two Intel® Xeon® 6 energy-efficient core processors, a single processor can have up to 144 cores. Provides thirty-two DDR5 memory slots, and the maximum rate can reach 6,400MT/s.
High scaling, high bandwidth
Provides a maximum of forty-five 2.5″ disk slots or twenty 3.5″ disk slots and +4 2.5″ disk slots, supports a maximum of 43 E1.S[1]/E3.S[1](For the product specifications in [1] planning, refer to the detailed product manual.). Supports up to 21 PCIe 5.0 expansion slots, 4 high-performance dual-width GPU boards.
High availability, high reliability
Good heat dissipation design, supports hot swapping of hard disks, power supplies, and fans. The power module supports 1+1 redundancy, and the fan supports N+1 redundancy.
Convenient management, easy maintenance
The intelligent management platform implements out-of-band monitoring of CPU, memory, hard disk, fan, power supply, and network resources. Supports automatic deployment, firmware upgrade, and remote operation, improving deployment and O&M efficiency. Supports LCD and tool-less installation.
Green, energy-saving, environment protection
80 PLUS high-efficiency platinum / titanium power supply, supporting power capping. Supports high-voltage DC and low-voltage DC technologies. Lead-free design for environmental protection.
Technical Specifications
Form
2U
Processor
Supports 1/2 two Intel ® Xeon® energy-efficient processors.
Memory
Thirty-two DDR5 memory slots, maximum rate: 6,400MT/s
Interconnection bus
Provides four UPI interconnection links. The maximum rate of a single link is 24GT/s.

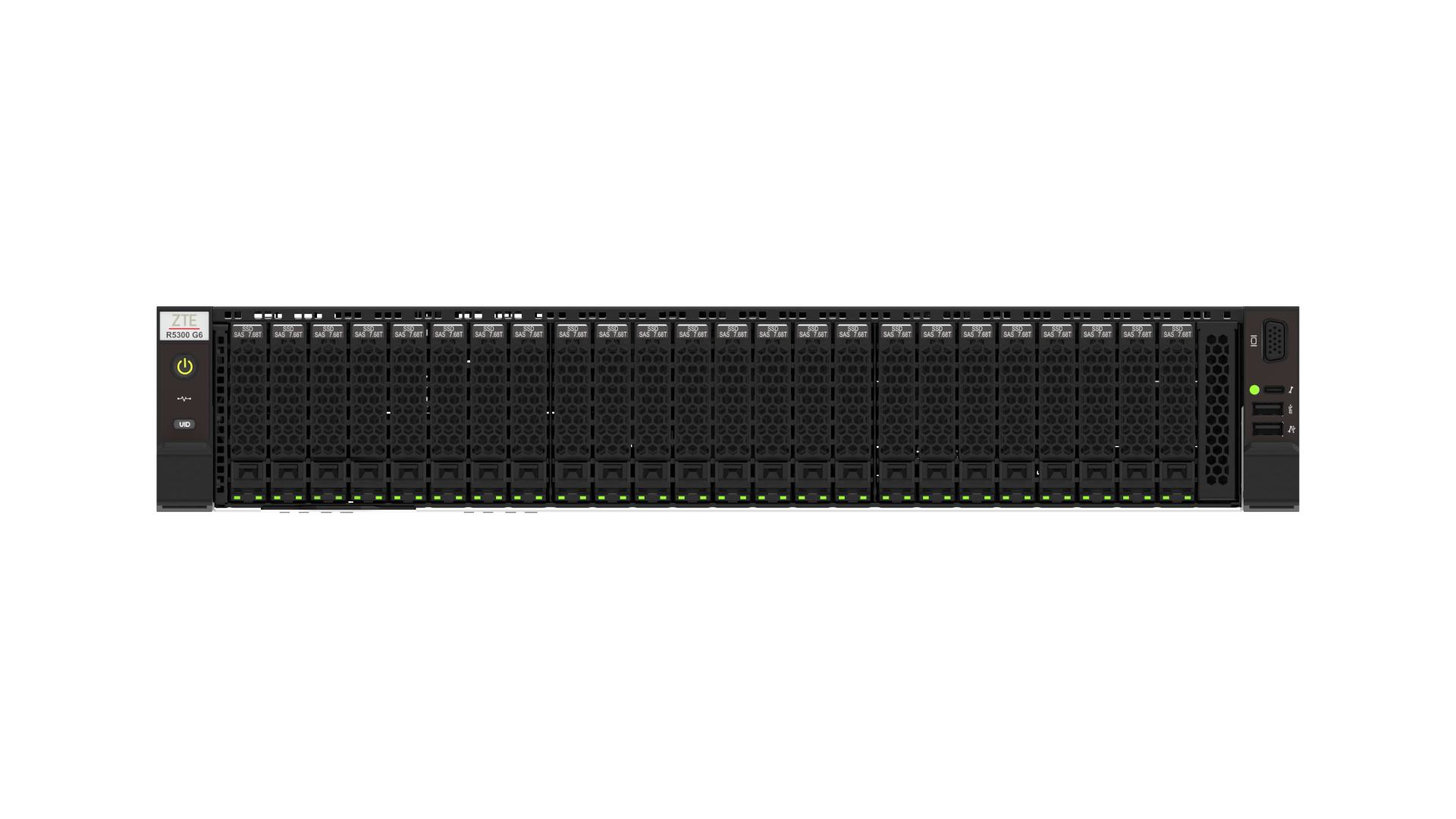

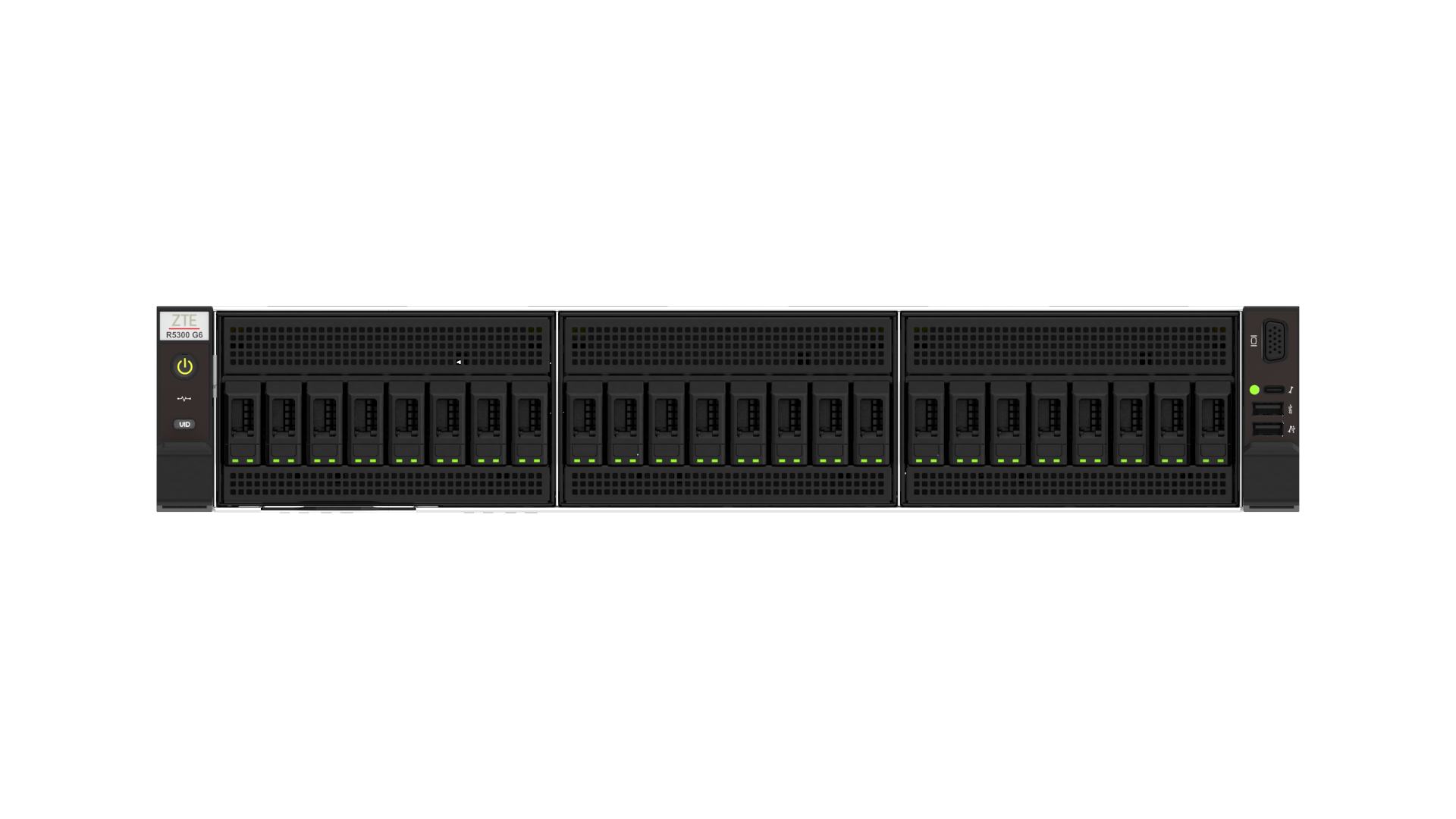

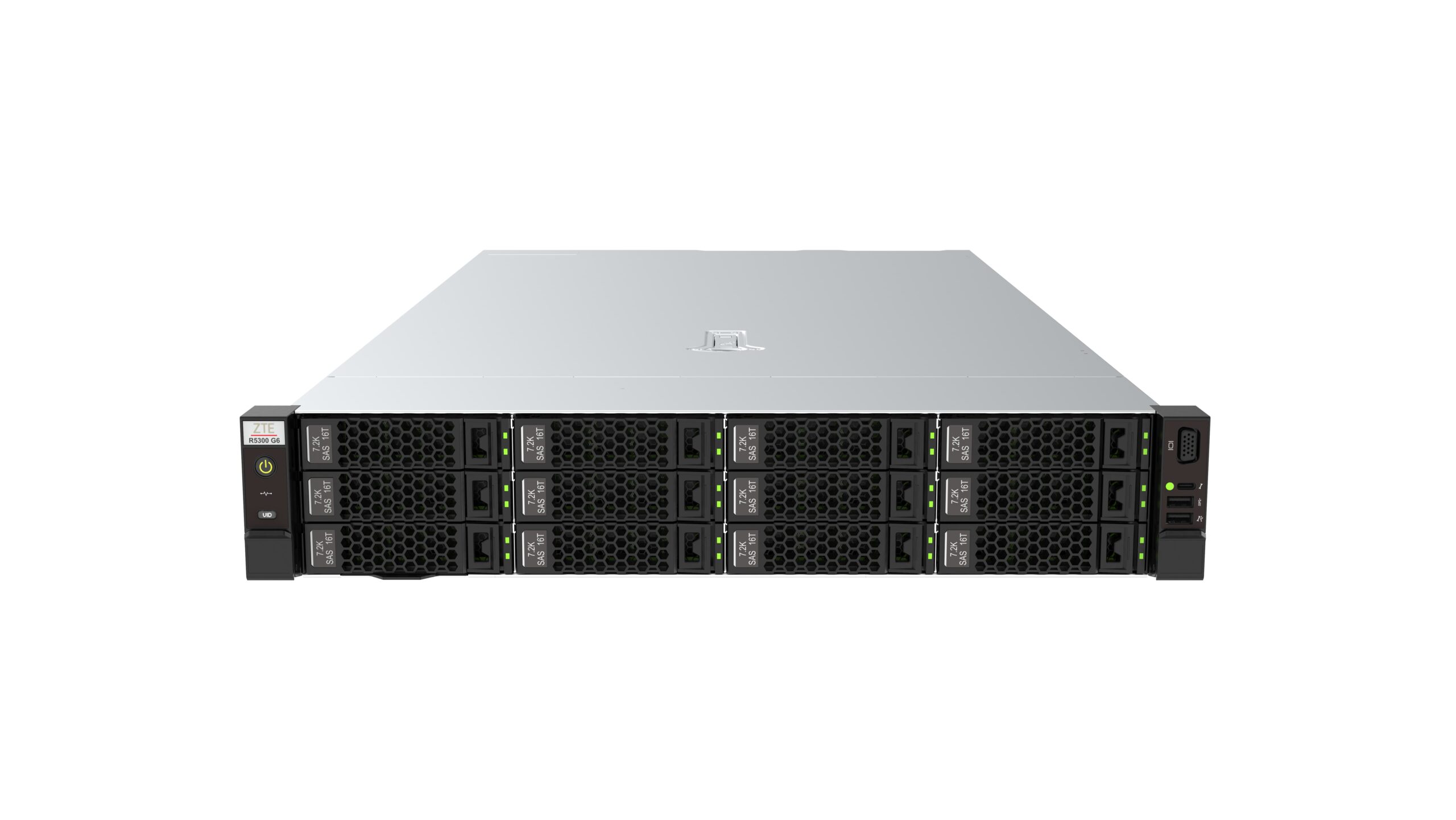

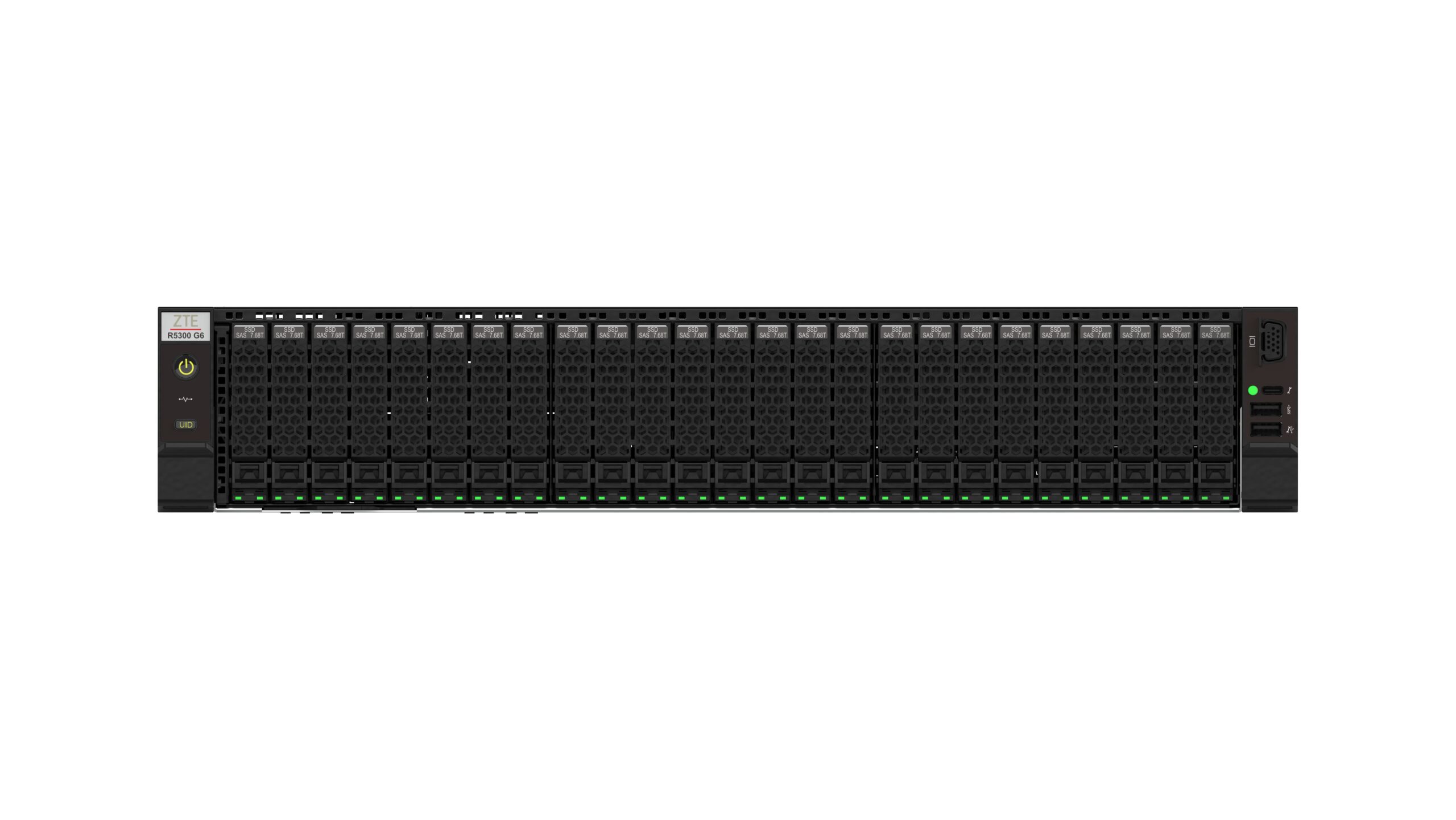

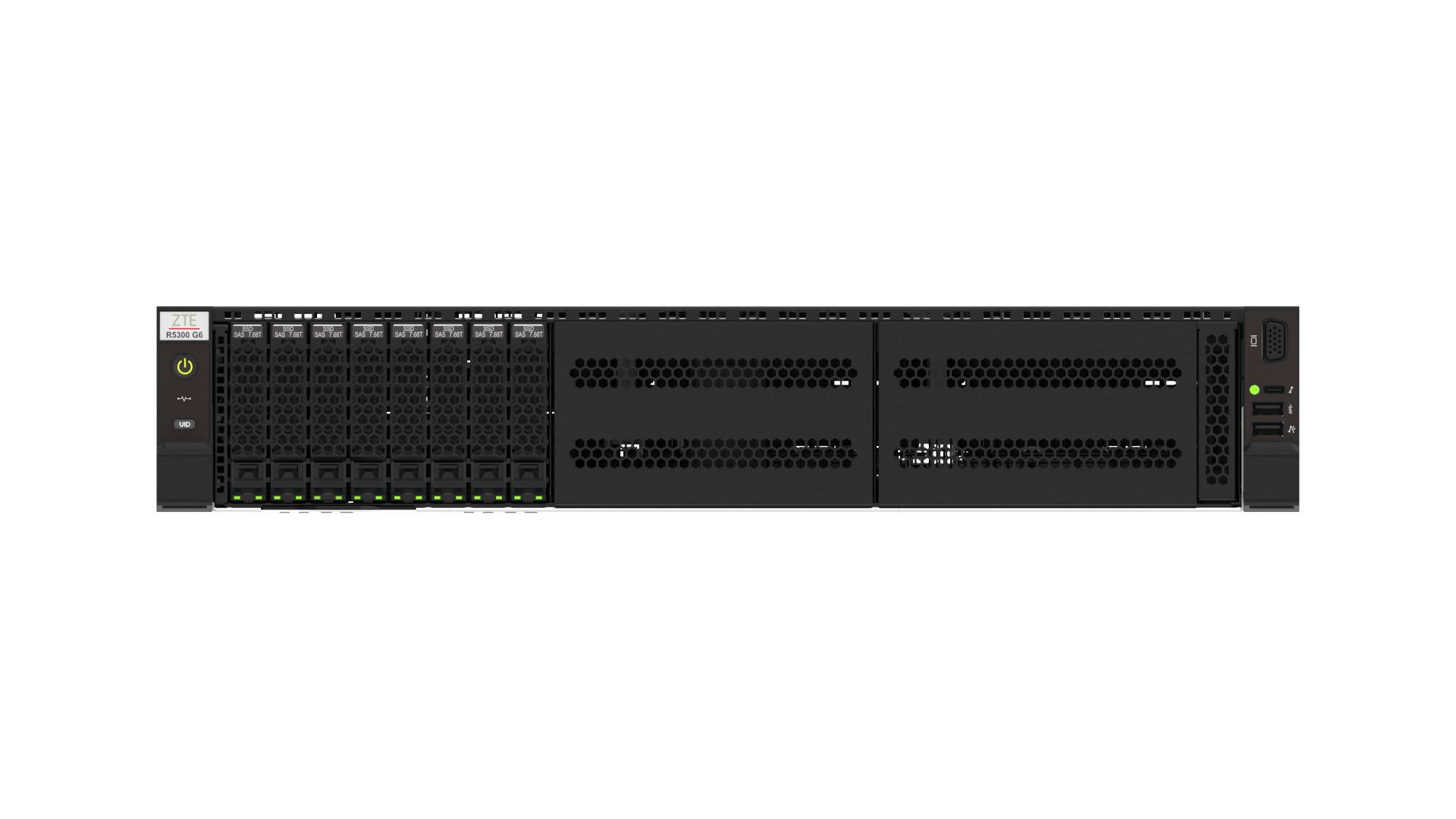

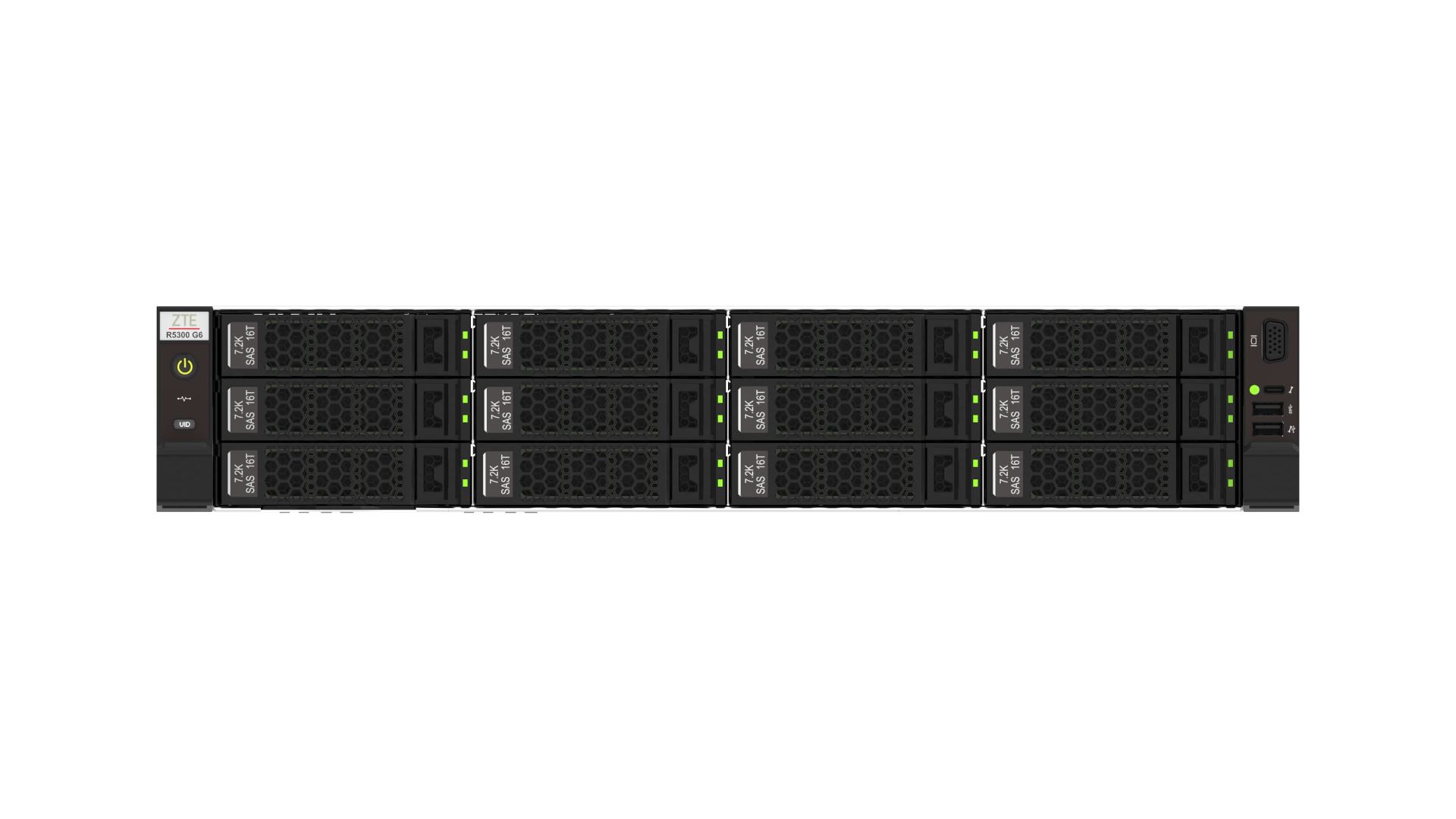

Supports a maximum of forty-five 2.5 „disk slots or twenty 3.5” disk slots and +4 2.5 „disk slots. A maximum of 43 E1.S[1]/E3.S[1](For the product specifications in [1] planning, refer to the detailed product manual.)
Network resources
Provides two OCP3.0 interfaces, supports PCIe 5.0 x8, and can be extended to two PCIe 5.0 x16 interfaces, and supports MultiHost for option
PCIe slot

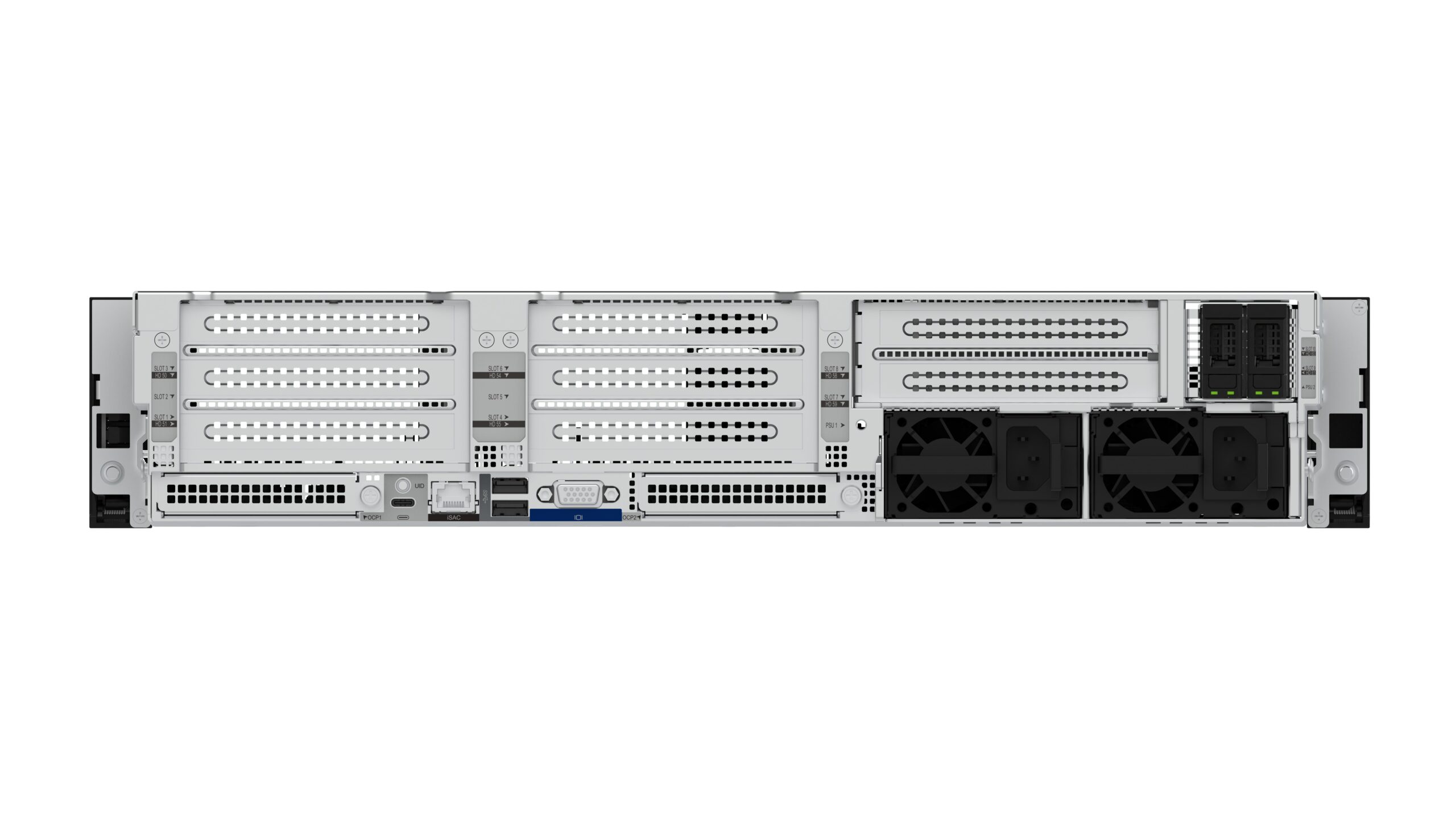

A maximum of 21 PCIe expansion slots are supported: Two dedicated OCP slots and nineteen standard PCIe slots
Peripheral device interface
Five USB interfaces (two rear USB3.0 interfaces, one front USB3.0 interface, one internal USB2.0 interface, and one front USB2.0 interface)
Two VGA interfaces (one on the front end and one on the back end)
One serial port (TYPE-C)
Equipment management interface
One independent GE management network port
Display
Integrated video card, supporting the PCIe standard video card for option
Compatible OS
Compatible with mainstream server operating systems:
Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Enterprise Linux, Vmware ESXi, and Ubuntu
Power
Supports 1+1 hot-swappable redundant power supplies.
Optional 550W/800W/1200W/1600W/2000W/2700W/3200W/3600W, supporting high-efficiency platinum/titanium power supplies
Supports 110V/220V AC, 240V/336V HVDC, and-48V DC.
Fan
Four sets of high-efficiency fans, N+1 redundancy, and an intelligent adjustment heat dissipation system
Environmental Conditions
Environmental Conditions
Operating temperature: +5ºC to +45ºC (The operating temperature is affected by different configurations. For details, refer to the technical document.)
Storage temperature:-40 ºC to +65 ºC
Operating humidity: 8% – 90% RH, non-condensing
Transportation and storage humidity: 5% – 95% RH, non-condensing
Altitude: Less than or equal to 5,000m. When the altitude is higher than 900m, the operating temperature decreases by one° C every 300m above sea level. In case of 3,000-meter-hight, mechanical hard disks cannot be configured.
Size
436 mm x 87 mm x 830 mm (W x H x D), excluding flanges and guide rails
Standard 19-inch rack (depth: >=1.2 m)
Weight in full configuration
Maximum configuration: About 40kg (excluding guide rails)
Related certificates
CCC…
Note:The official website information is only for reference. For specific server sales, please contact the local representative office;
The configuration support is affected by the choice of different models.Please refer to the detailed product technical documentation for details.
