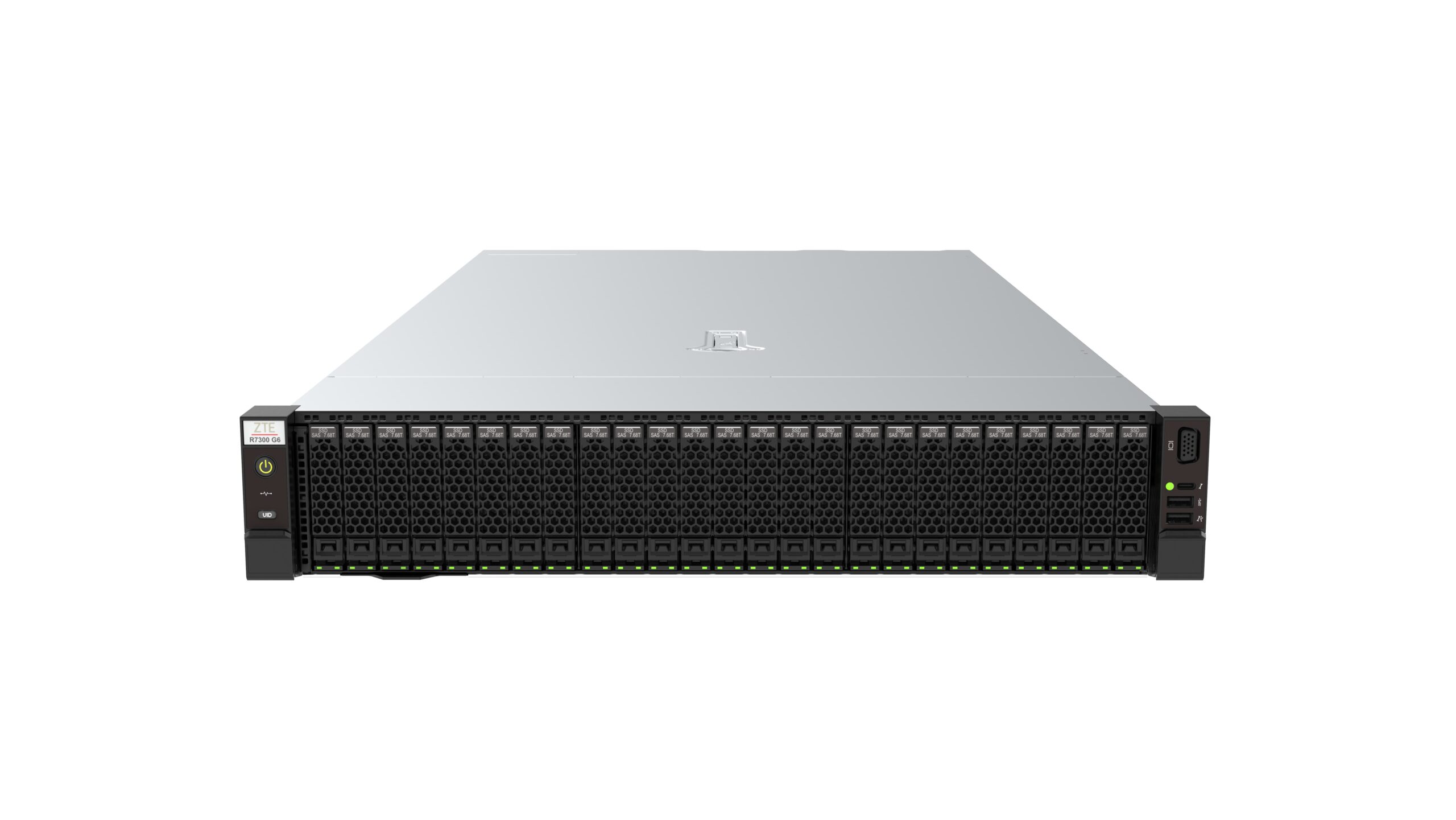

The R7300 G6 is a new-generation 2U2-socket general-purpose rack server of ZTE. It supports 2 Intel® Xeon® 6 Performance-core Processors (Granite Rapids-AP 6900P) or Efficiency-core Processors (Sierra Forest-AP 6900E). With a high-density, modular, and streamline design, the R7300 G6 features high performance, large capacity, high reliability, easy scalability, and easy management.
High density, high performance
It supports 2 Intel® Xeon® 6 Performance-core Processors (Granite Rapids-AP 6900P) or Efficiency-core Processors (Sierra Forest-AP 6900E), a single processor can have up to 288 cores. Provides 24 DDR5 memory slots, and the maximum rate can reach 6,400MT/s.
High scaling, high bandwidth

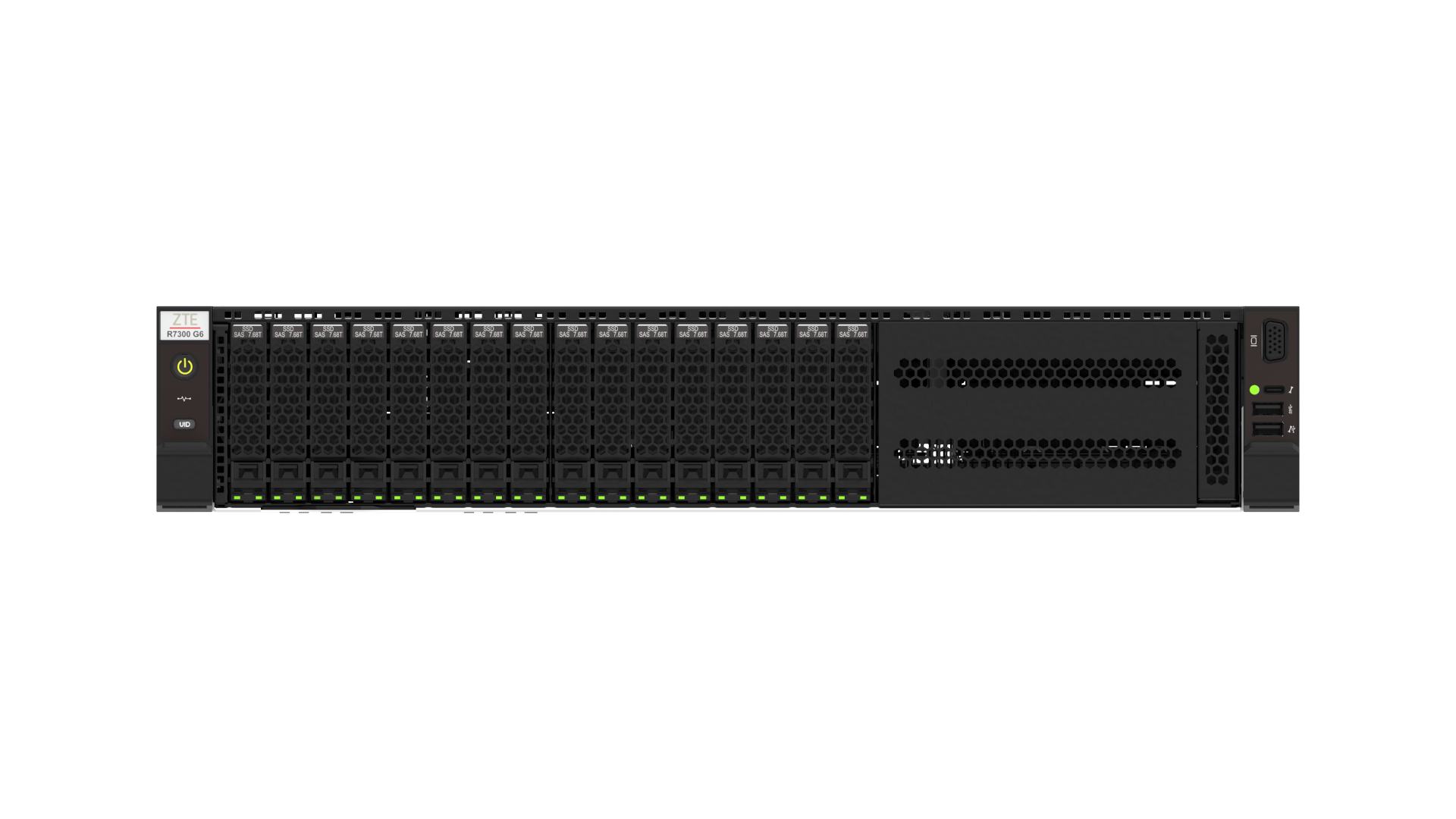

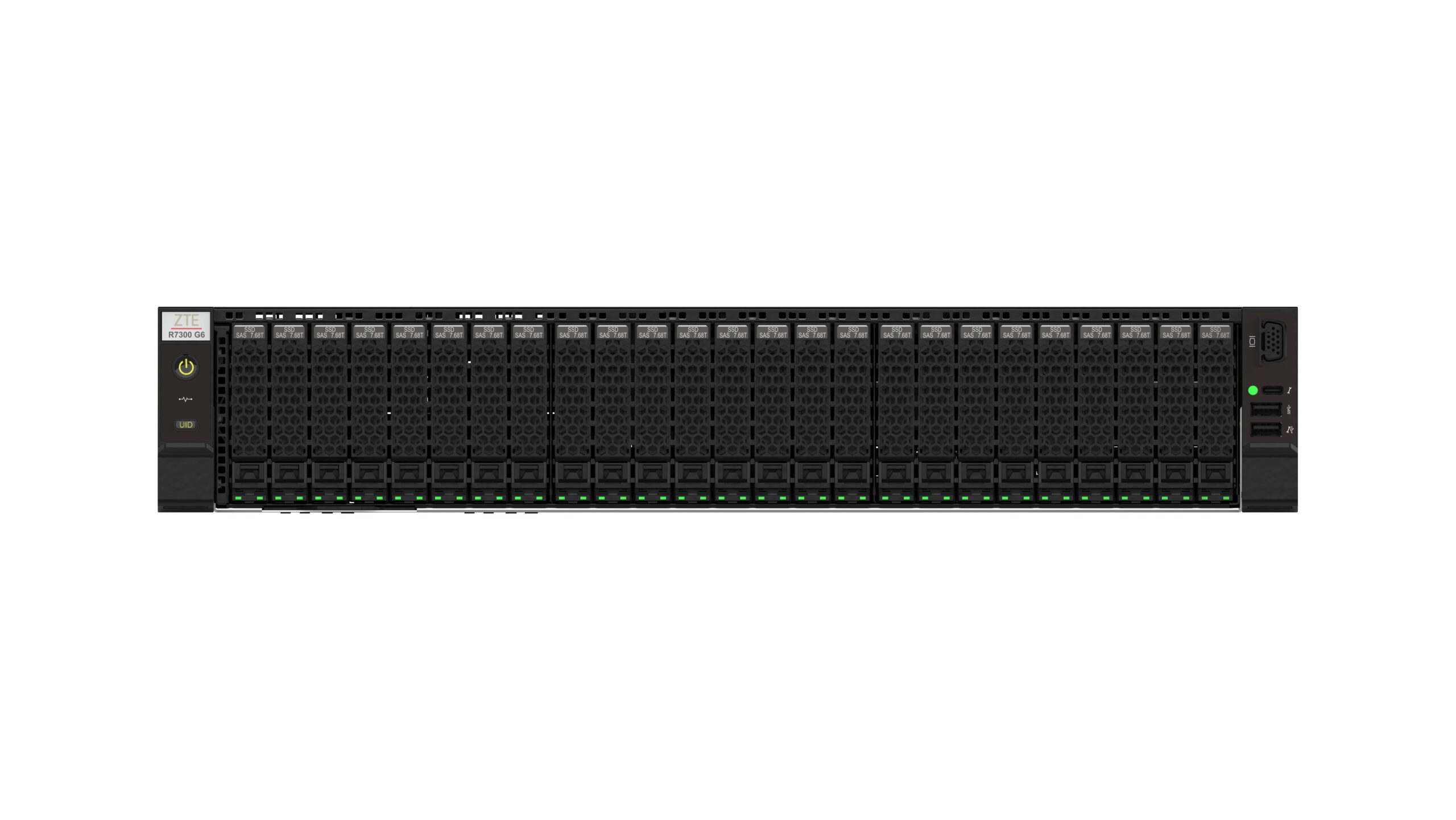

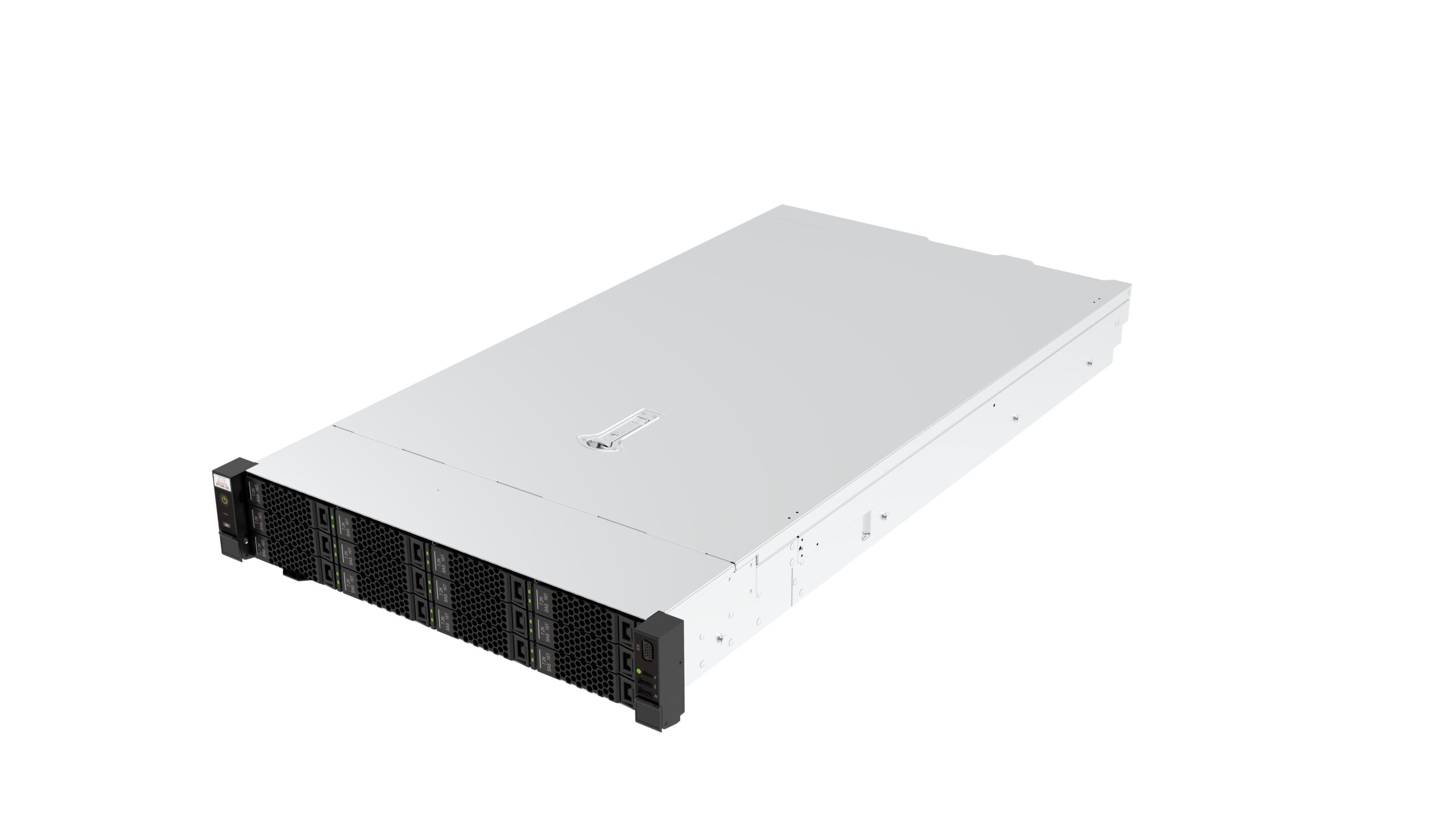

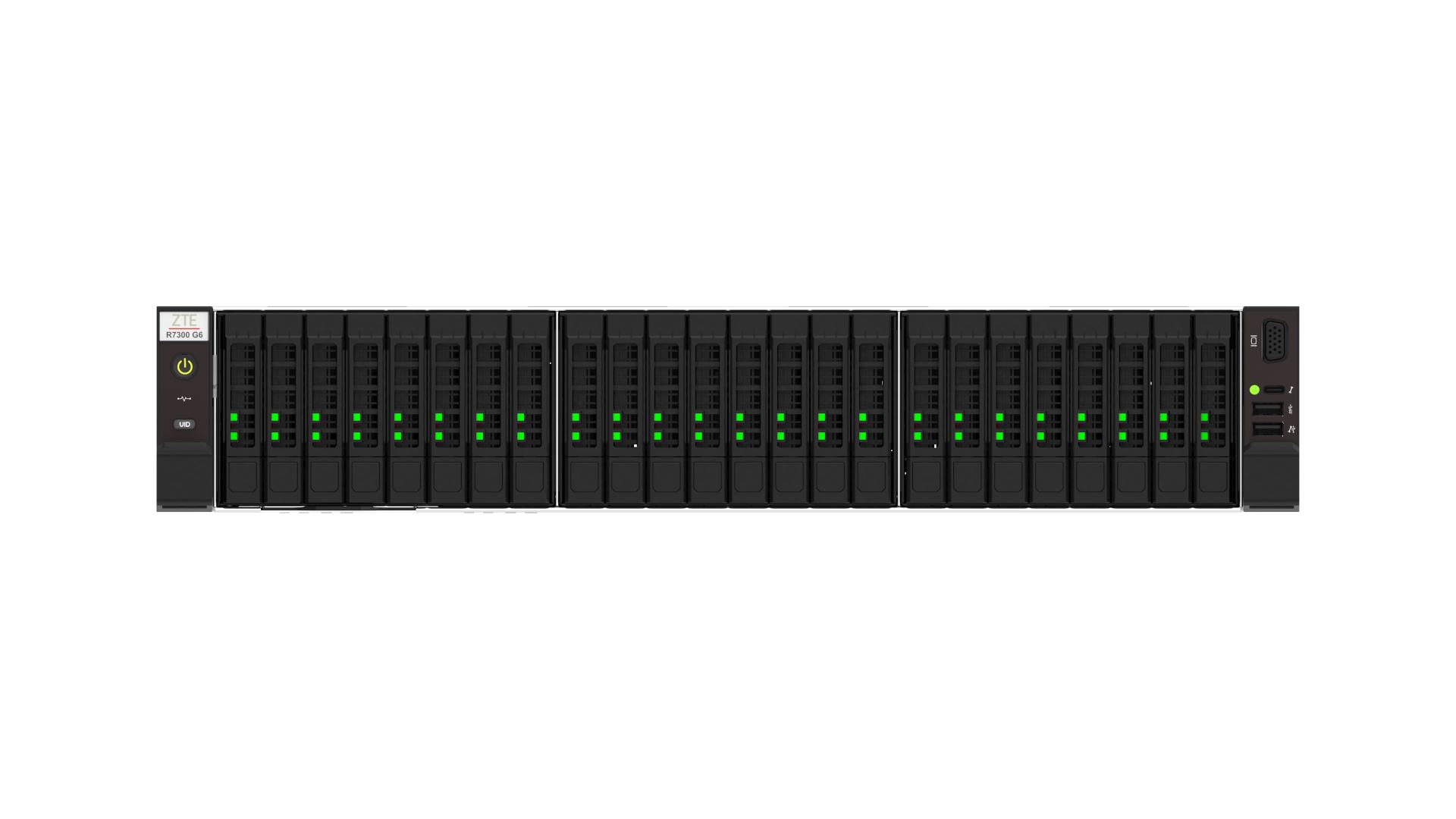

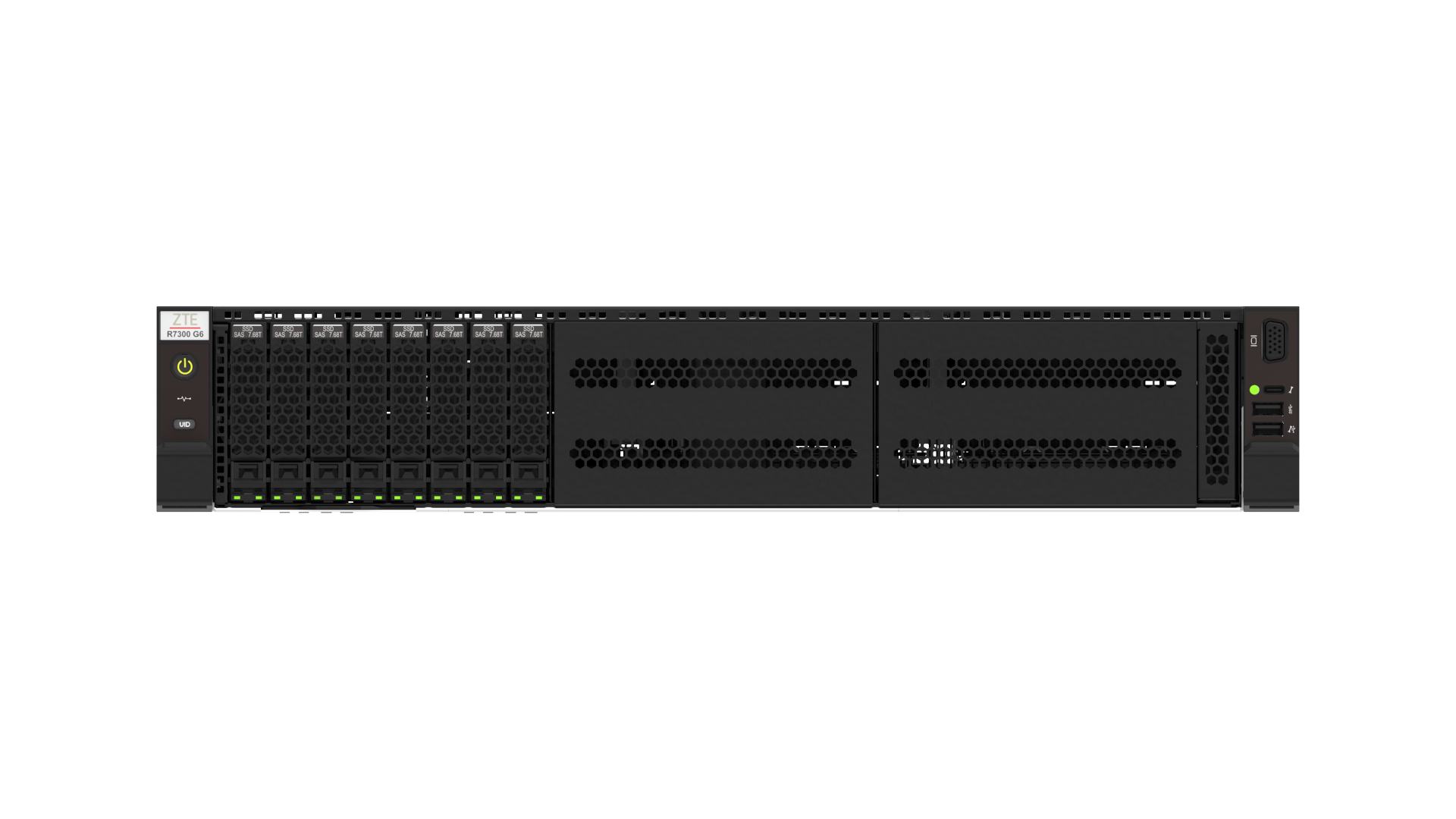

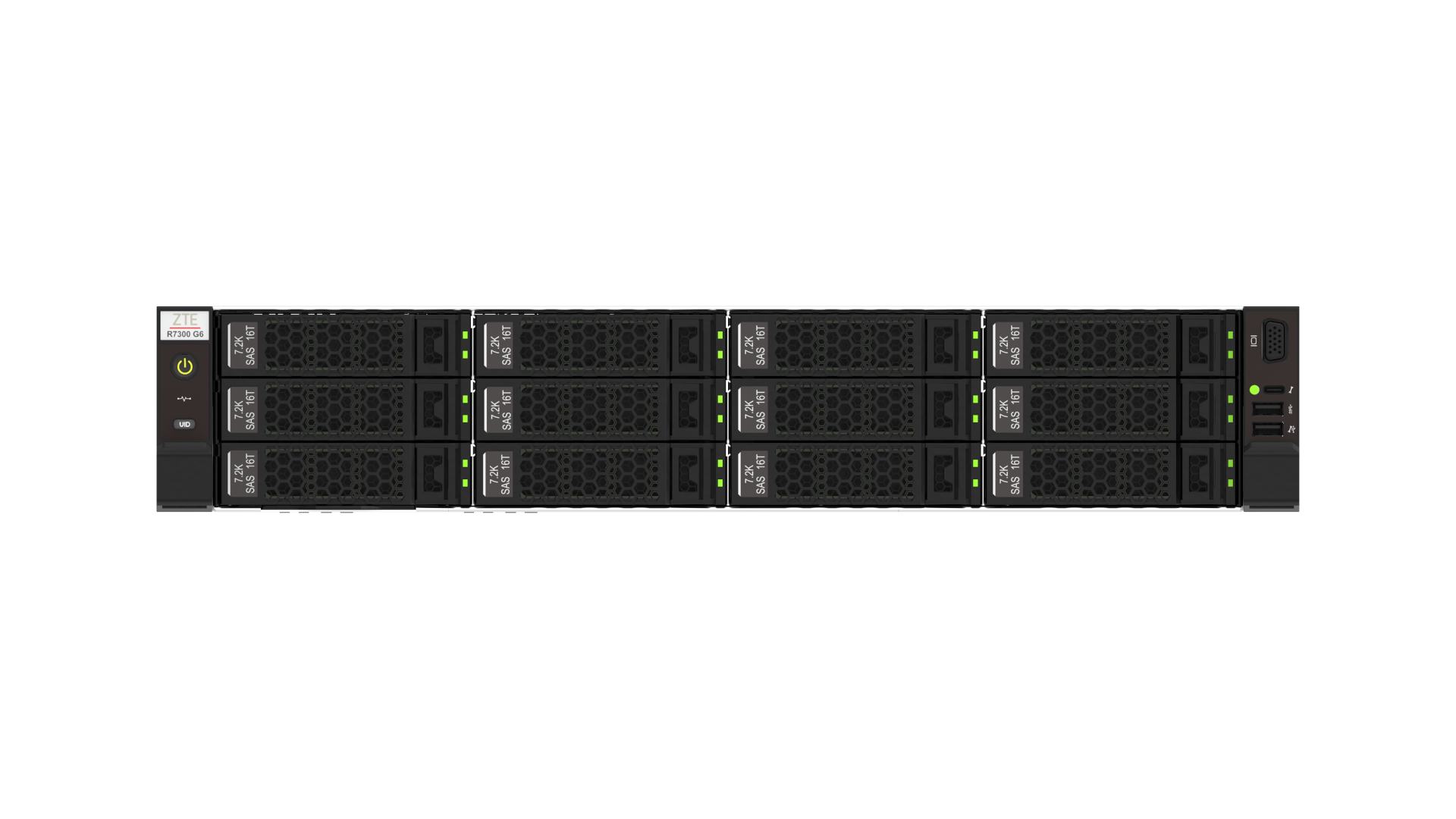

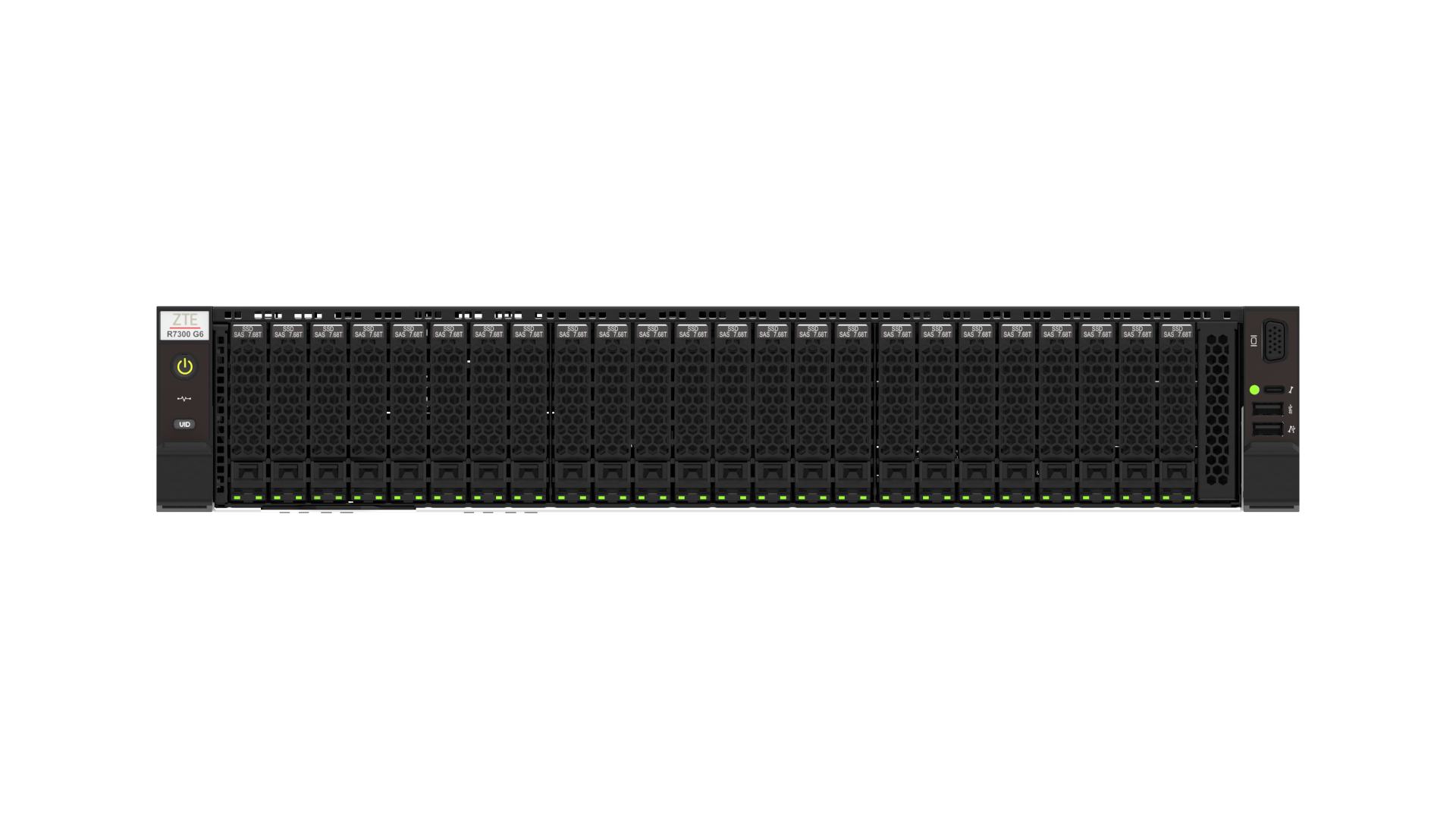

Provides a maximum of forty-five 2.5″ disk slots or twenty 3.5″ disk slots and +4 2.5″ disk slots, supports a maximum of 43 E1.S[1]/E3.S[1](For the product specifications in [1] planning, refer to the detailed product manual.). Supports up to 21 PCIe 5.0 expansion slots, 4 high-performance dual-width GPU boards.
High availability, high reliability
Good heat dissipation design, supports hot swapping of hard disks, power supplies, and fans. The power module supports 1+1 redundancy, and the fan supports N+1 redundancy.
Convenient management, easy maintenance
The intelligent management platform implements out-of-band monitoring of CPU, memory, hard disk, fan, power supply, and network resources. Supports automatic deployment, firmware upgrade, and remote operation, improving deployment and O&M efficiency.
Green, energy-saving, environment protection
80 PLUS high-efficiency platinum / titanium power supply, supporting power capping. Supports high-voltage DC and low-voltage DC technologies. Lead-free design for environmental protection, Supports liquid cooling.
Technical Specifications
Related certificates
CCC…
Form
2U
Processor
Supports 2 Intel® Xeon® 6 Performance-core Processors or Efficiency-core Processors
Memory
Supports 24 DDR5 memory slots with a maximum rate of 6,400MT/s
Interconnection bus
Provides 6 UPI interconnection links. The maximum rate of a single link is 24 GT/s
Hard disk controller
Supports RAID 0/1/5/6/10/50/60 and power-off protection
Local storage
Supports a maximum of 45 2.5 „disk slots or 20 3.5” disk slots and + 4 2.5 „disk slots Supports a maximum of 43 E1.S[1]/E3.S[1](For the product specifications in [1] planning, refer to the detailed product manual.)
Network resources
Provides two OCP3.0 interfaces, supports PCIe 5.0×8, and can be extended to 2 PCIe 5.0×16 interfaces, and supports MultiHost for option
PCIe slot
A maximum of 21 PCIe expansion slots are supported: 2 dedicated OCP slots and 19 standard PCIe slots
Peripheral device interface
5 USB interfaces (two rear USB3.0 interfaces, one front USB3.0 interface, one internal USB2.0 interface, and one front USB2.0 interface)
2 VGA interfaces (one on the front end and one on the back end)
1 serial port (TYPE-C)
Equipment management interface
1 independent GE management network port
Display
Integrated video card, supporting the PCIe standard video card for option
Compatible OS
Compatible with mainstream server operating systems: Microsoft Windows Sever, Red Hat Enterprise Linux, SUSE Enterprise Linux, Vmware ESXi, Ubuntu
Power
Supports 1+1 hot-swappable redundant power supplies.
(Optional) 1600W/2000W/2700W/3200W/3600W, supporting high-efficiency platinum/titanium power supplies
Supports 110V/220V AC, 240V/336V HVDC, and -48V DC
Fan
Four sets of high-efficiency fans, N+1 redundancy, and an intelligent adjustment heat dissipation system
Environment conditions
Operating temperature: + 5 ºC to + 45 ºC (The operating temperature is affected by different configurations. For details, refer to the technical document.)
Storage temperature: – 40 ºC to + 65 ºC
Operating humidity: 8% – 90% RH, non-condensing
Transportation and storage humidity: 5% – 95% RH, non-condensing
Altitude: ≤ 3,000m. When the altitude is higher than 900m, the operating temperature decreases by 1ºC every 300m above sea level. In case of 3,000-meter-hight, mechanical hard disks cannot be configured
Size
436mm x 87mm x 830mm (W x H x D), excluding flanges and guide rails
Standard 19-inch rack (>=1.2m deep)
Weight in full configuration
Maximum configuration: About 40kg (excluding guide rails)
Note:The official website information is only for reference. For specific server sales, please contact the local representative office;
The configuration support is affected by the choice of different models.Please refer to the detailed product technical documentation for details.
