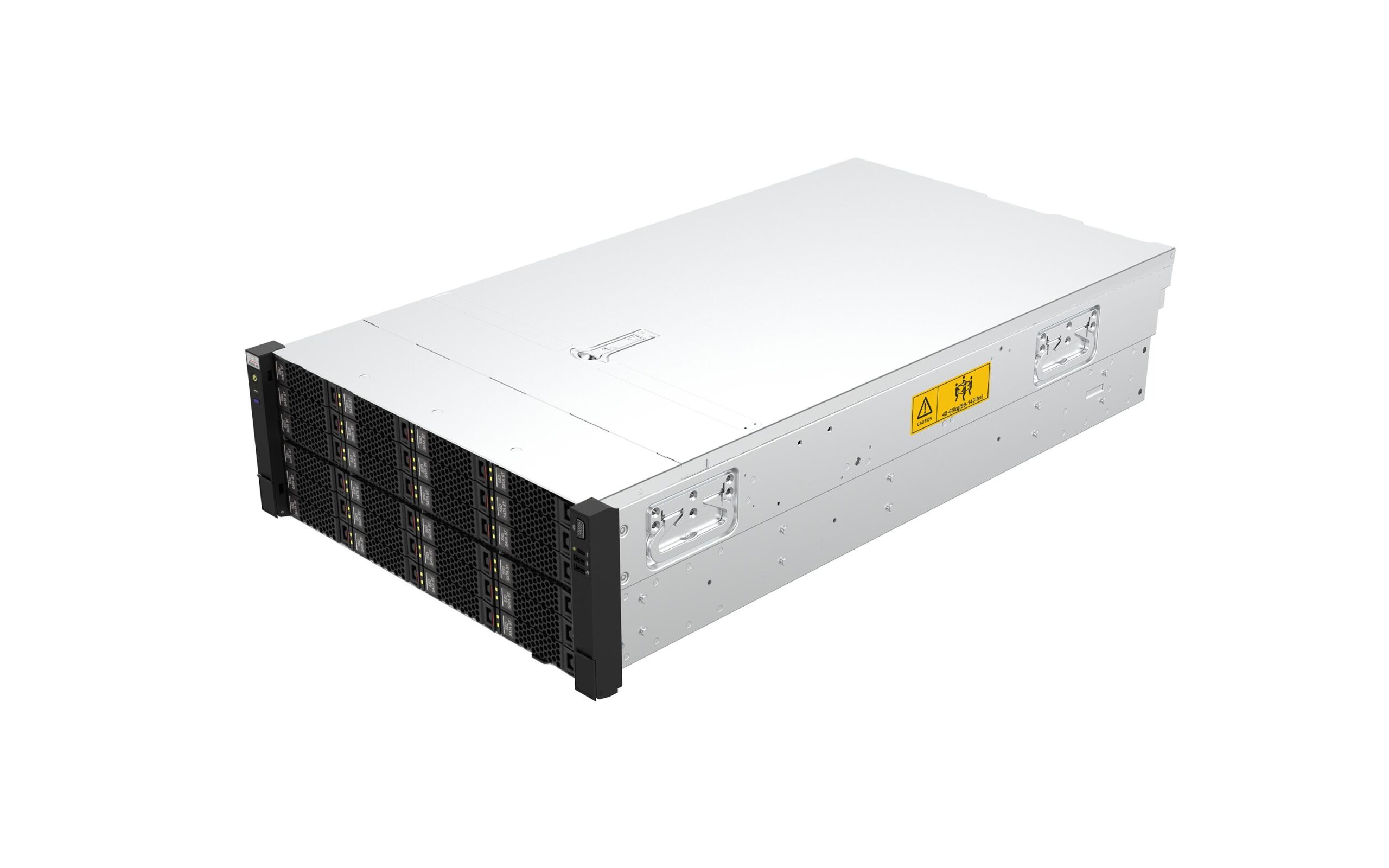

The R5500 G6 is a next-generation 4U dual-socket rack server from ZTE, supporting two Intel® Xeon® 6 processors with E-core architecture. It offers ultra-large storage capacity, ultra-high-speed I/O interfaces, and powerful computing capabilities. This server is designed for storage-intensive applications, combining both computing and storage, making it ideal for large-scale data storage applications in fields.
High Density, High Performance
Supports two Intel® Xeon® 6 processors with E-core architecture, with up to 144 cores per processor. Provides 32 DDR5 memory slots, with speeds up to 6400 MT/s, supporting high-performance NVMe SSDs.
High Scalability, High Bandwidth
Supports up to 44 hot-swappable 2.5/3.5-inch hard drives, 12 PCIe 5.0 expansion slots, 3 high-performance dual-width GPUs.
High Availability, High Reliability
Efficient thermal design, hot-swappable components such as hard drives, power supplies, and fans enhance system availability. Power modules support 1+1 redundancy, and fans support N+1 redundancy. Supports TPM/TCM for added security.
Convenient Management, Easy Maintenance
Intelligent management platform for out-of-band monitoring of resources such as CPU, memory, hard drives, fans, power supplies, and network. Features automatic deployment, firmware upgrades, remote management, and other functions to improve deployment and maintenance efficiency.
Energy-efficient, Eco-friendly
Equipped with 80PLUS Platinum/Titanium energy-efficient power supplies, supporting power capping. Intelligent fan speed control and quiet design. Lead-free design, environmentally friendly.
Technical Specifications
Form
4U rack server
Processor
Supports 1 or 2 Intel® Xeon® 6 processors with E-core architecture
Interconnect Bus
Offers 4 UPI interconnect links, with a maximum speed of 24 GT/s per link.
Memory slot
32 DDR5 memory slots, with speeds up to 6400 MT/s.
Hard disk controller
Supports RAID levels 0/1/5/6/10/50/60 with power-loss protection.
Local Storage

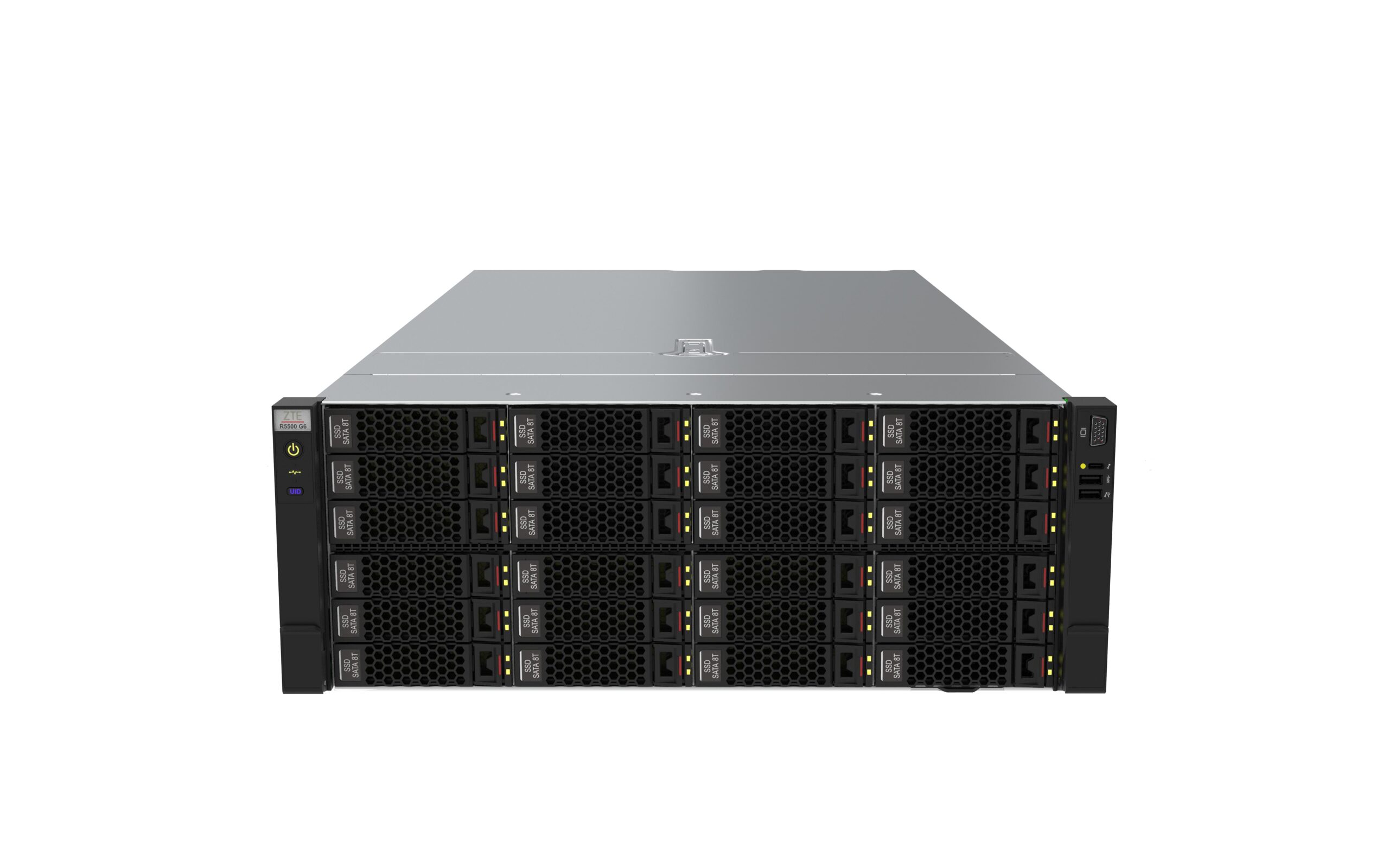

Various front storage drive bay configurations, supporting hot-swapping:
24×2.5/3.5″ drive bays, supporting HDD/SSD, with 8 slots supporting U.2 drives.

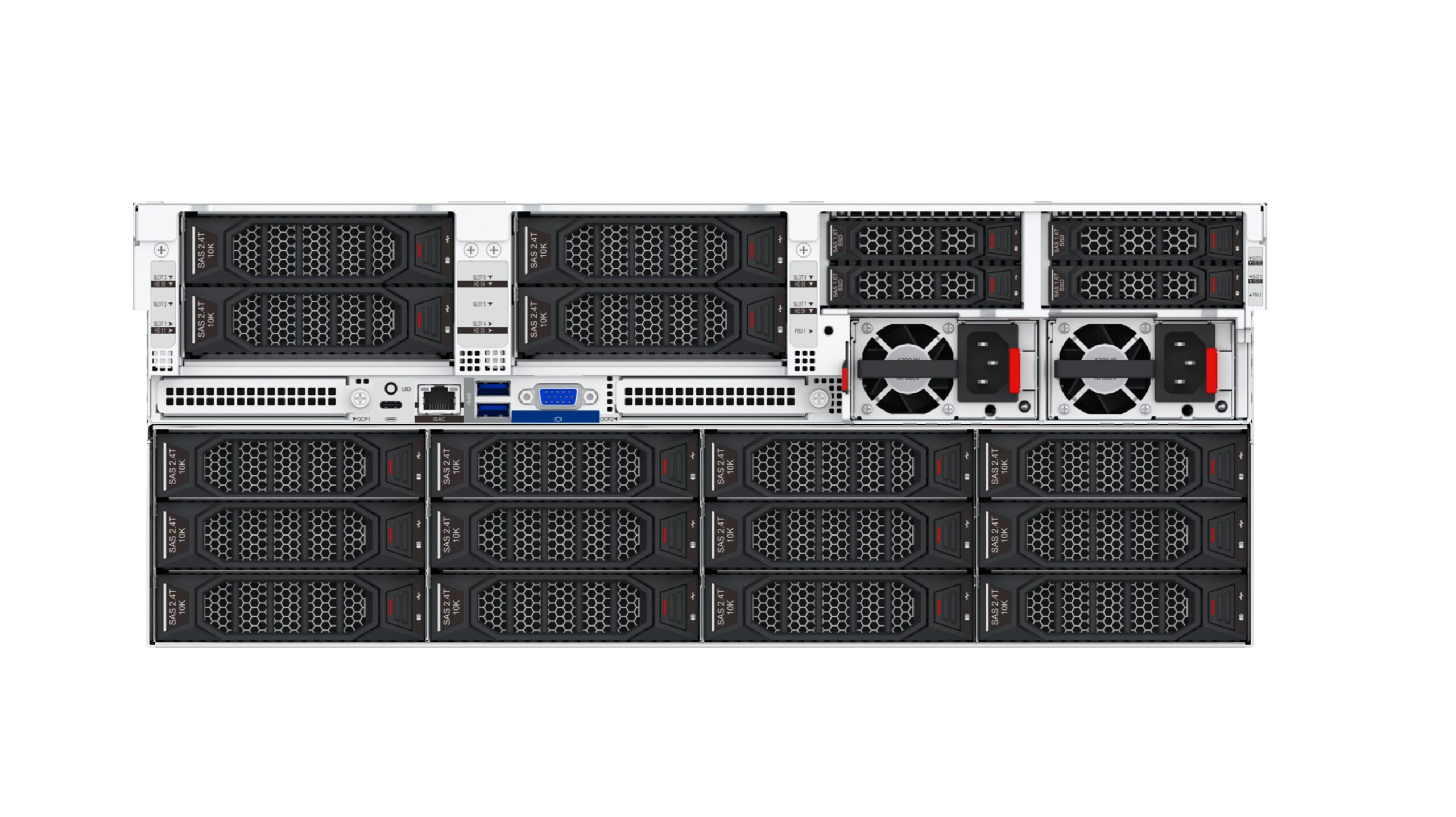

Various rear storage module configurations are available, with hot-swappable replaceable modules:
12×2.5/3.5″ drive bays, supporting HDD/SSD/U.2/E3.S drives.
2×2.5″ drive bays with replaceable modules, supporting HDD/SSD/U.2/E1.S drives, supporting up to 4 drives.
2×2.5/3.5″ drive bays with replaceable modules, supporting HDD/SSD/U.2/E3.S/E1.S drives, supporting up to 4 drives.
Network resources
Provides 2 OCP 3.0 interfaces, supporting PCIe 5.0 x8, with an optional expansion to 2 PCIe 5.0 x16, and optional support for MultiHost.
PCIe slot

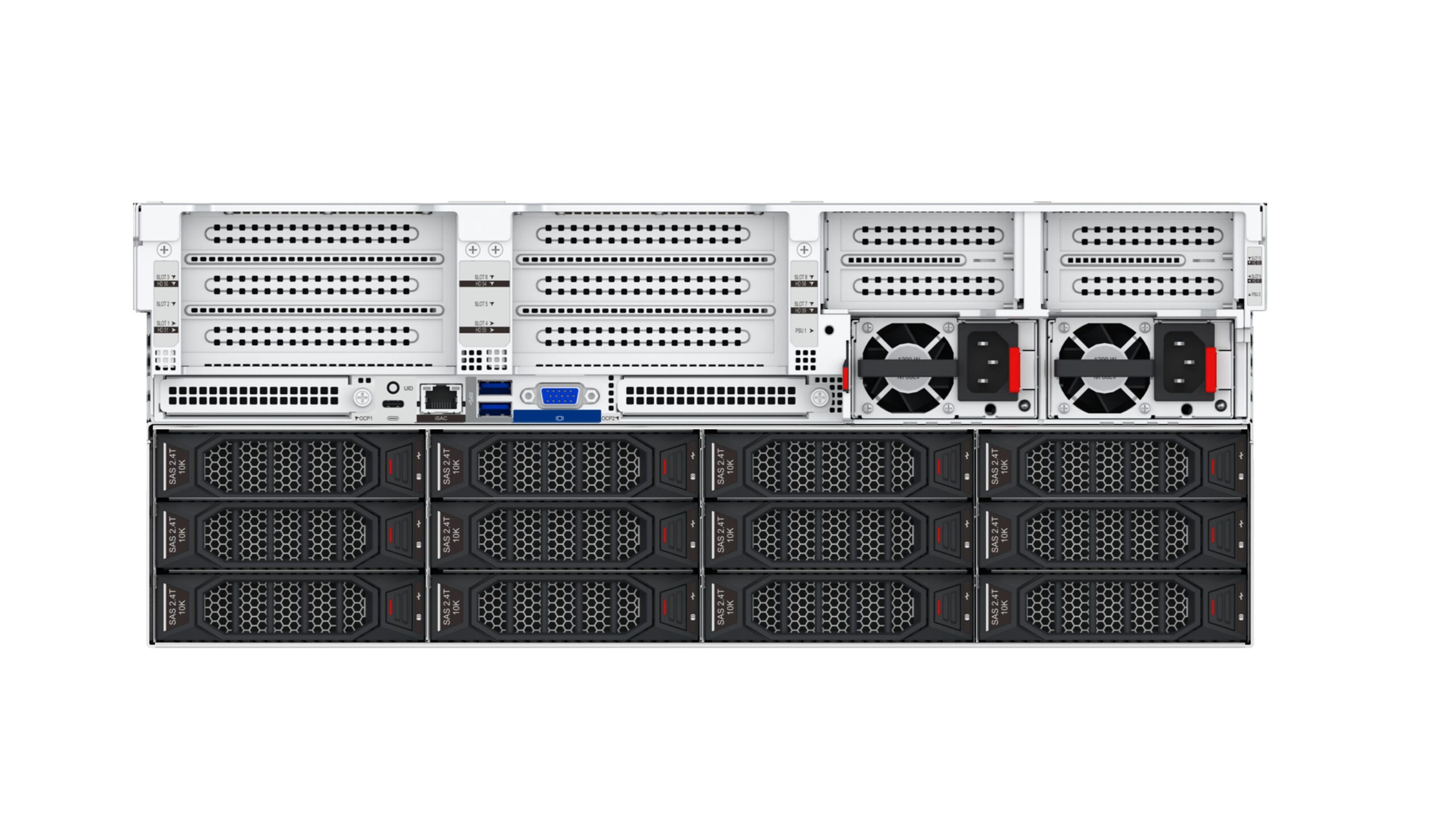

Supports up to 12 PCIe expansion slots: 2 dedicated OCP slots and 10 standard PCIe slots.
External equipment interface
5 USBs (two USB3.0 at the rear , one USB3.0 at the front and one USB2.0 interface, one USB2.0 at the front)
Two VGA interfaces (one front end and one back end)
One serial port (TYPE-C)
Device Management Interface
1 independent GE management network port.
Display
Integrated graphics card, with an optional PCIe standard graphics card.
Power supply
Supports 1+1 hot-swappable redundant power supply.
Optional 550W/800W/1200W/1600W/2000W/2700W/3200W/3600W, supporting high-efficiency Platinum/Titanium power supplies.
Supports 110V/220V AC, 240V/336V high-voltage DC, and -48V DC.
Environment condition
Operating Temperature: +5ºC to +45ºC (Operating temperature may vary depending on configuration
please refer to technical documentation for details).
Storage Temperature: -40ºC to +65ºC
Operating Humidity: 8% to 90% RH, non-condensing
Storage/Transport Humidity: 5% to 95% RH, non-condensing
Altitude: ≤3000 m. For every 300 m increase in altitude above 900 m, the operating temperature decreases by 1°C. Configurations with mechanical hard drives are not supported above 3000 m.
Dimensions
Without side ears: 830mm (depth) x 447.6mm (width) x 175mm (height)
With side ears: 866.2mm (depth) x 482.2mm (width) x 175mm (height)
Standard 19-inch rack (rack depth ≥ 1.2 meter)
Fan
4/6 groups of high-efficiency fans, N+1 redundancy, with an intelligent cooling system.
Compatible OS
Supports current mainstream server operating systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Enterprise Linux, VMware ESXi, Ubuntu, and others.
Note:The official website information is only for reference. For specific server sales, please contact the local representative office;
The configuration support is affected by the choice of different models.Please refer to the detailed product technical documentation for details.
